Winco PSS8 – Standby Generator

$3,485.00

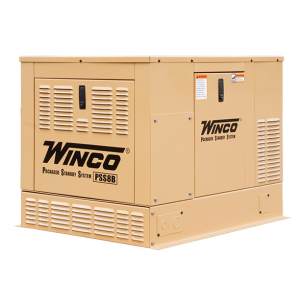

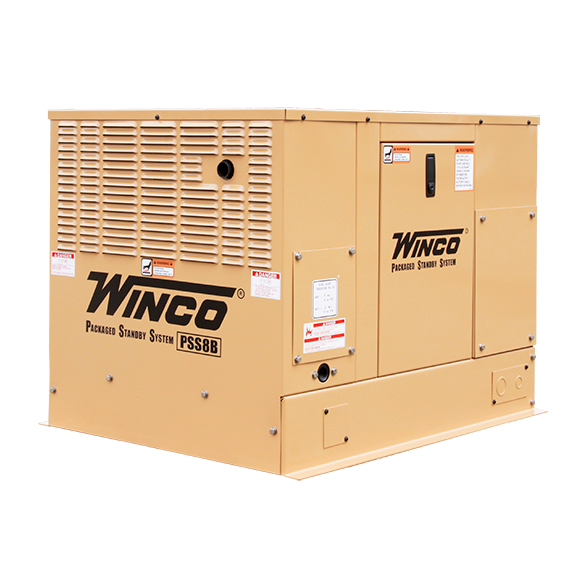

Bigger isn’t always better. The Winco PSS8B2W emergency standby generator is an industrial grade 8kW generator. The three chamber housing design keeps the generator cool while allowing for the smallest footprint in its class. The industrial V-Twin Briggs & Stratton Vanguard engine provides smooth and consistent power that is capable of running essential loads like sump pumps, well pumps, furnaces, refrigerators, TV’s, lights and computers. Since this generator is sized to keep the basics running you will also be able to save money on fuel and maintenance.



There is a flat rate shipping fee of $100.00 within the continental United States.

Freight is to a Business Address – The customer is responsible for unloading merchandise upon delivery.



Printable Brochures:

PSS8 Packaged Standby System

ASCO 185 Series Transfer Switch



Asco 185 Series 100 Amp ATS

ASCO 185 Series, 100 Amp, 2-Wire Start, Automatic Transfer Switch

Transfer Switch Enclosure

NEMA 1 Enclosure is Standard – NEMA 3R provides additional weather protection for outdoor use.

Vapor Fuel Filter

Engine Oil Heater

Battery Heater

Battery

Group 26 500 CCA

Maintenance Kit 16200-008

Maintenance Kit Includes: Air Filter, Spark Plug, Oil & Oil Filter. 6 Lbs

Compare

Description

Features

Briggs & Stratton Vanguard Engine - Premium-grade Vanguard engines are application engineered to power equipment that works for a living.

Sure Flow Cooling System - The three cooling intakes provide exceptional air flow and reduced heat soak.

DSE 3110 Digital Controller - Provides detailed operating and diagnostic information through its digital display.

Prime Power Ready - This unit is appropriate for either Emergency Standby or Prime Power Applications like powering remote water pumps.

Battery Charger - A Guest 3-Stage battery charger included

100% Load Tested - No statistical sampling here.  Winco load tests every generator before it leaves their facility.

Galvanealed Steel Weather Enclosure - Industrial galvanealed steel housing with powder-coat paint to withstand the elements.


GENERATOR SPECIFICATIONS

Voltage Regulation+/-5%
Total Harmonic Distortion<5%
Temperature Rise125°/40° C
PhaseSingle
Type2 Pole Rotating Field
BrushlessYes
Generator Speed3600 RPM
Voltage ControlCapacitor
Rotor2/3 Pitch
Windings100% Copper
Load Acceptance100% Rating/Single Step
Sealed Ball Bearings1
Wave Distortion<1.5%
Telephone Interference<2%
InsulationClass H
Generator Warranty (1)2 Years

ENGINE SPECIFICATIONS

BrandBriggs & Stratton
ModelVanguard
Speed3600 RPM
Displacement570 CC/OHV
CylindersV-Twin
LubricationForced w/Spin-on Filter
IgnitionElectric
GovernorMechanical
Regulation+/-1.8 Hz Steady State
ExhaustCritical Grade, Glass-Pack
Low Oil ProtectionStandard
High Oil Temp ProtectionStandard
Recommended Oil10W-30
Oil Capacity1.5 Qts.
Engine Warranty3 Yrs

GENSET SPECIFICATIONS

Motor Starting (Code G)3 hp
Prime ApplicationsYes
Structural Clearance18 Inches
Carb/EPA ApprovedYes
CSA ApprovedYes
UL2200 ListedYes
Winco Warranty1 Yr/1000 Hrs

FUEL SPECIFICATIONS

FUEL CONSUMPTION
LP
NG

1.6 Gal/Hr
132 Ft³/Hr

158,760 BTU/Hr
132,000 BTU/Hr
FUEL TANK SIZING
60°F (16°C)
32°F (0°C)
0°F (-18°C)
-20°F (-29°C)

150 Gal
150 Gal
250 Gal
500 Gal
LINE SIZING
Up to 25'
25' To 100'
Over 100'

3/4" Pipe
1" Pipe
Use a 2 Regulator System
INLET PRESSURE4-6 Oz7"-11"Water Column

SOUND DATA

NO LOAD
FULL LOAD
LeftRightFrontBackLeftRightFrontBack
63.264.466.463.864.965.368.565.3
Note: All measurements are in db(a) and tested at 7 meters (23 feet).


BATTERY SPECIFICATIONS

DC System Voltage12V
DC AlternatorEngine Mounted
Battery Rack/CablesIncluded
Battery Charger3 Stage Included
Required Battery(1)Group 26 500CCA
Notes: (1)Battery Not Included

DERATING FACTORS

Temperature >104°F3% Per 10°F
Altitude3% Per 1000 Ft
Prime Power20%
Max Operating Temp122°F / 50°C

2-WIRE CONTROL FEATURES

Fail to StartYes
Fail to StopYes
Low Oil PressureYes
High Engine Oil TempYes
Under Frequency /SpeedYes
Over Frequency/SpeedYes
Low VoltageYes
High VoltageYes
Battery Over/Under VoltageYes
Digital DisplayYes

Power Specifications

LP Gas:

  • Output - 120/240V 1-PH
  • Watts - 8,400
  • KVA - 8.4
  • Amps - 35 (Unity (1.0) Power Factor
  • Circuit Breaker - 35 Amps

Natural Gas:

  • Output - 120/240V 1-PH
  • Watts - 7,600
  • KVA - 7.6
  • Amps - 32 (Unity (1.0) Power Factor
  • Circuit Breaker - 35 Amps

Optional Accessories

Asco 185 Series Auto Transfer Switch - 100 Amp - The ASCO 185 Series automatic transfer switch (ATS) are 2-wire control switches that are compatible with all 2-wire start systems from all manufacturers. The switch monitors incoming utility power. When the utility power fails it starts the generator and transfer the emergency load onto the generator. After the utility power is restored it will transfer the load back to the utility source, cool down the generator and then return to a standby mode. The ATS has an exercise circuit that tests the generator system every week. The automatic test feature can be set under load or under no load.

Note: More transfer switches can be found by searching "Transfer Switches"

Engine Oil Heater -  order to ensure quick starting in the coldest environments WINCO has designed an engine heater kit that is field installed to keep your engine block warm. The kit includes a thermostat that engages the heater at 50 degrees F (internal cabinet temperature) and shuts off at 60 degrees F. The heating probe is produced by Kim Hot Start and is inserted into the oil pan replacing the second drain plug. The kit is powered from the factory installed duplex receptacle. To allow for the battery heater an additional NEMA 5-15 receptacle is included in the kit.

Vapor Fuel Filter -  If contaminants enter the fuel system of generator you will experience reduced power output and decreased reliability.  This device provides a layer of protection to prevent contamination that can enter your fuel system from a variety of sources.  5 Lbs.

Battery - Group 26 550 CCA

Battery Heater - Keeps battery warm for maximum power output at start-up. 5 Lbs.

Solar Panel Charger & External Receptacles - 12V Solar panel charger with L-14-20 20 Amp and 5-20 20 Amp duplex receptacles externally mounted in weather-proof encclsure for off grid applications.

Maintenance Kit - Your generator requires regular maintenance. Our kits provide all of the necessary products to ensure your generator is ready when you need it most.

Additional information

Weight 400 lbs
Dimensions 45 x 31 x 32 in
