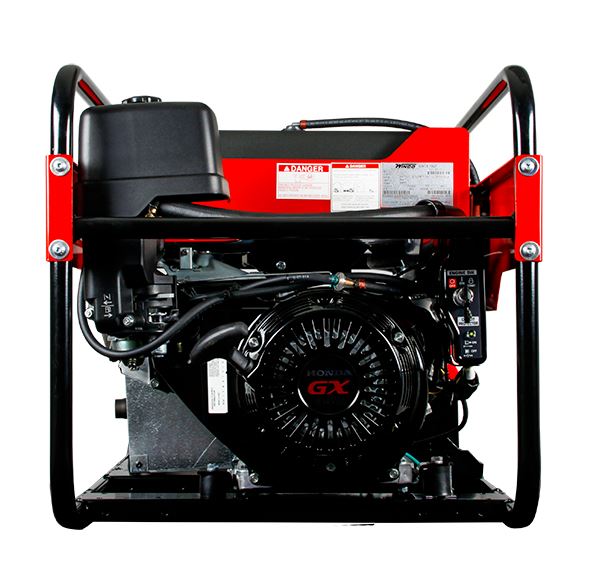

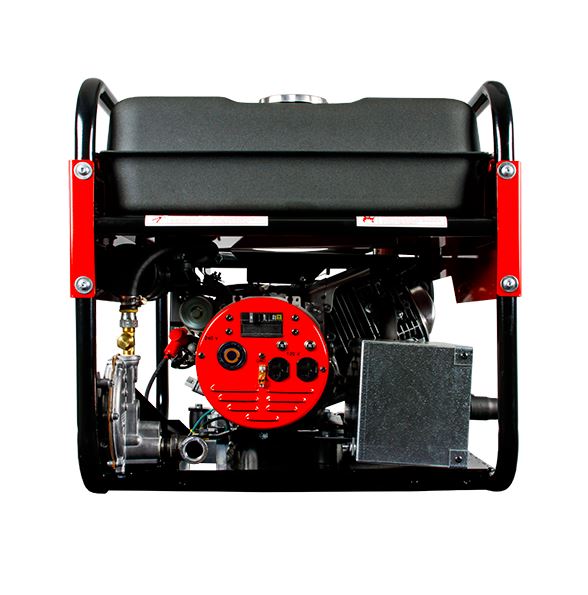

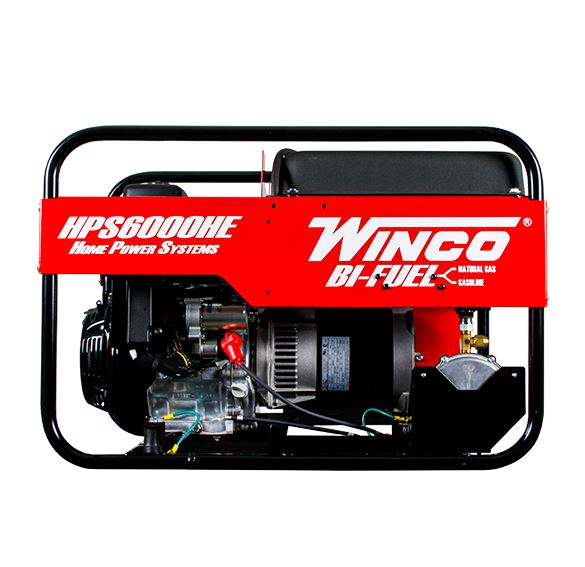

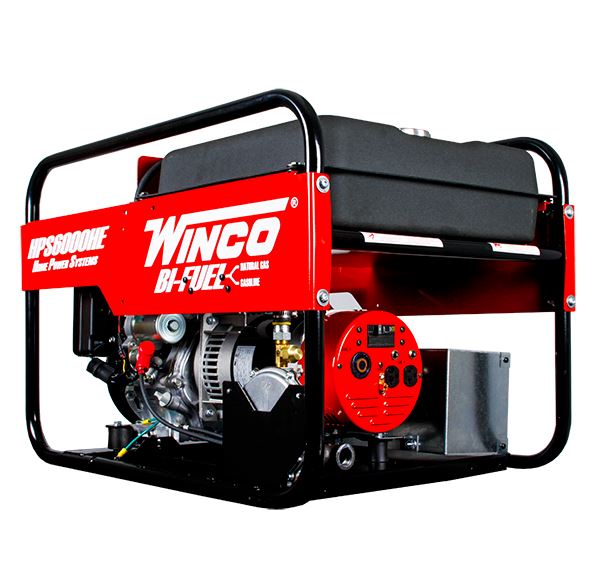

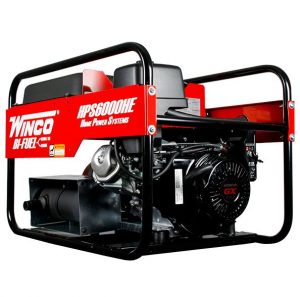

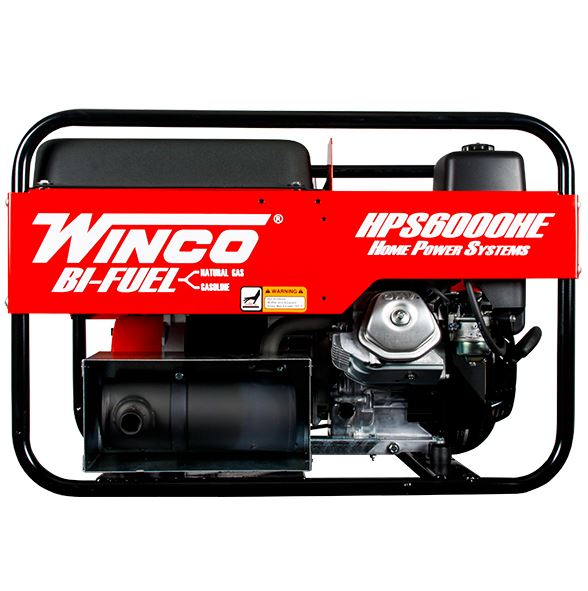

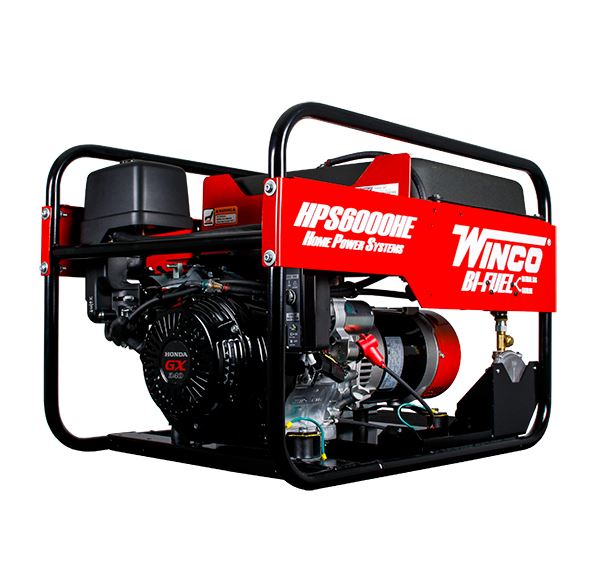

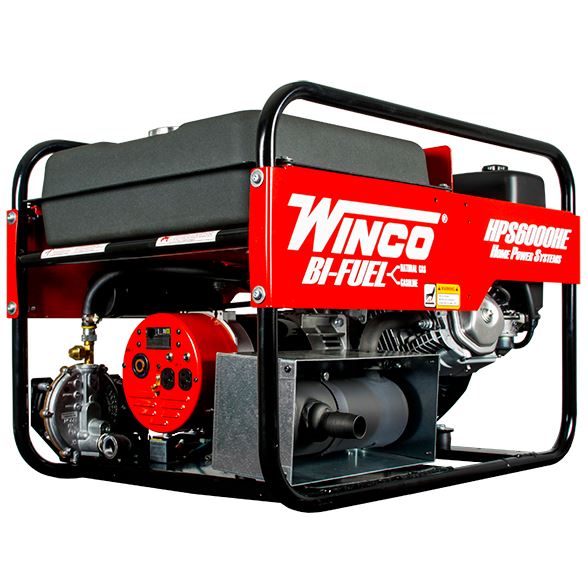

Winco HPS6000HE Bi-Fuel Portable Generator

$2,270.00

Winco’s HPS6000HE is a high quality and versatile portable generator. It utilizes the dependable Honda GX340 engine and is fitted with a special carburetor which allows the engine to operate on gasoline or natural gas. Switching between fuels is quick and simple. When this generator is combined with a manual transfer switch it powers essential circuits in your residence during outages but remains mobile enough for a trip to the cabin. This is not an aftermarket adaption. You will maintain your full engine warranty and the generator set meets EPA emissions standards.

Printable Brochures:

Spec Sheet                               2 Wheel Dolly Kit Outline
Outline Drawing                     2 Wheel Dolly Kit Installation
Operating Manual                GX270/340 Operating Manual
Parts List                                  GX270/340 Service Manual





Dolly Kit

16199-042 HPS Series – 2-Wheel Dolly Kit

Generator Cover

Small Sized Generator Cover Without Dolly Kit

Line Voltage Monitor

Line Voltage Monitor

Plugs

NEMA L14-30 30 Amp Plug

Fuel Solenoid Kit

Low Pressure Fuel Solenoid Kit

Battery

12 V 18-A 235 CCA

Battery Trickle Charger

Battery Trickle Charger

Maintenance Kit

Maintenance Kit – Includes: air filter, spark plug, oil & Sta-Bil fuel stabilizer.

Compare

Description

FEATURES

  • Honda GX340 Engine - You expect the best, you get the best.  The Honda GX340 engine has more power, lower fuel consumption, and lower emissions than previous versions.
  • Bi-Fuel - Designed to easily run and transition between two fuel sources; natural gas and gasoline.
  • Low Oil Protection - In the event there is a low oil level, the engine will shut down to protect the engine from damage.
  • Sturdy Wrap-Around Welded Tubular Cradle - Winco uses 1"-14 gauge steel for dependable durability.
  • 7 Gallon Fuel Tank - The EPA-approval steel fuel tank design eliminates hydrocarbon emissions.
  • Premium Square D Circuit Breakers - Square D is the industry leader in circuit breaker protection.
  • 100% Load Tested - Every generator is fully tested prior to leaving Winco's facility.

HPS6000 HE Generator Specifications

STARTING WATTS6,000
RUNNING WATTS5,500
RUNNING AMPS @ 120 VAC (Derate 20% for Natural gas)45.8
RUNNING AMPS @ 240 VAC (Derate 20% for Natural gas)22.9
VOLTAGE REGULATIONCAPACITOR +/-5%
FREQUENCY REGULATION+/-3%
MAIN CIRCUIT BREAKER25 AMP
NEUTRAL BONDEDYES
120 VOLT RECEPTACLES(1) NEMA 5-20 20A (GFCI)
120/240 VOLT RECEPTACLES(1) NEMA L14--30 30A
MOTOR STARTING (CODE G)2 HP
SOUND DATA FULL LOAD72
LIFTING EYENO
ASSEMBLED INUSA
EPA APPROVEDYES
CARB APPROVEDNO
CSA APPROVEDNO
UNIT WARRANTY2 YR RESIDENTIAL
DIMENSIONS32.75" x 22.5" x 22"
NET WEIGHT202 LBS
SHIPPING DIMENSIONS33" x 25" x 26"
SHIP WEIGHT224 LBS
FREIGHT CLASS70

HPS6000HE Engine Specifications

ENGINE BRANDHONDA
ENGINE MODELGX30
ENGINE STARTERRECOIL/ELECTRIC
ENGINE SPEED3600 RPM
ENGINE CYLINDERSSINGLE
DISPLACEMENT/TYPE389 CC / OHV
LOW OIL PROTECTIONSTANDARD
RECOMMENDED OIL10W-30
OIL CAPACITY1.2 QTS
FUEL TANK7 GAL
FUEL GAUGEON TANK
FUEL USE GASOLINE1 GAL/HR
FUEL USE NATURAL GAS160 FT(3)/HR - 163,200 BTU/HR
ENGINE WARRANTY3 YRS RESIDENTIAL

Additional information

Weight 224 lbs
Dimensions 33 × 25 × 26 in
