Description
FEATURES

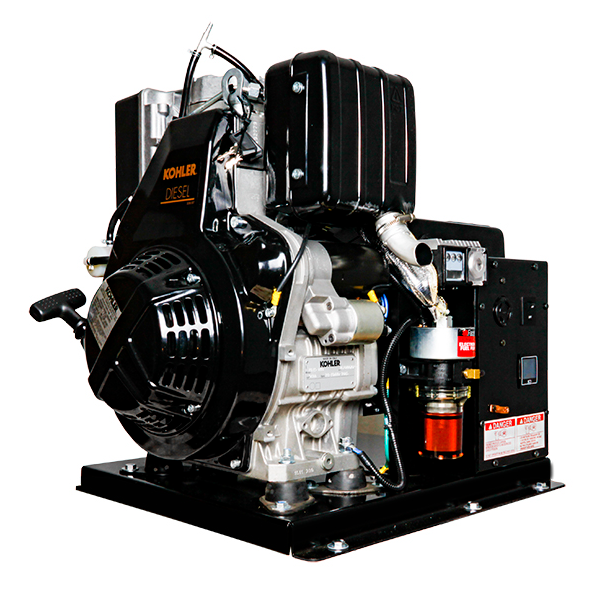

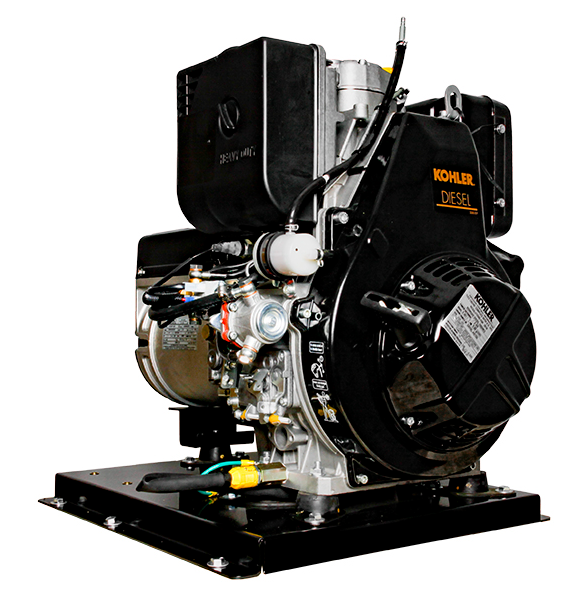

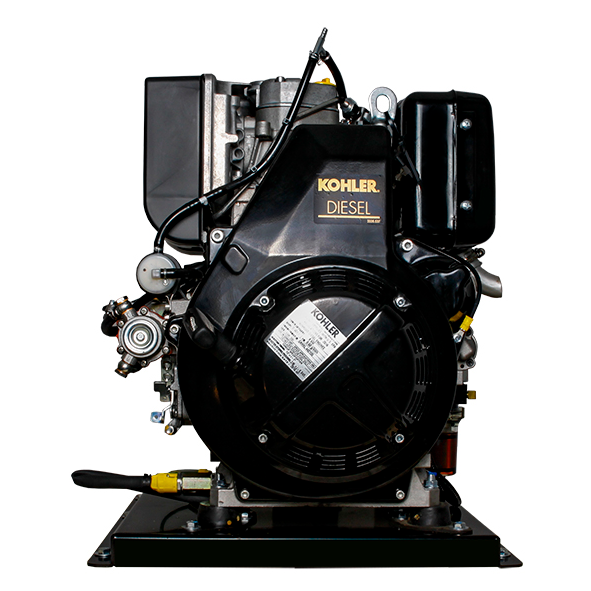

- KOHLER KD440 Engine - This diesel engine has the reliability and longevity you’ve come to expect from Kohler.
- Low Oil Protection - In the event there is a low oil level, the engine will shut down to protect the engine from damage.
- Premium Circuit Breakers - Providing clear and instant identification of a tripped circuit.

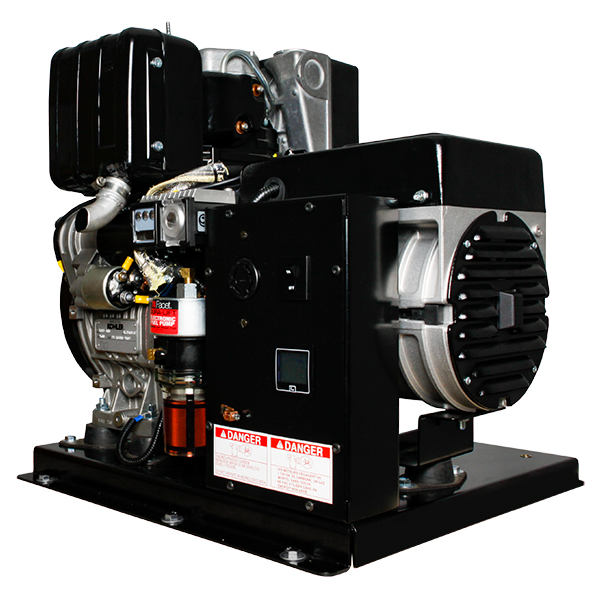

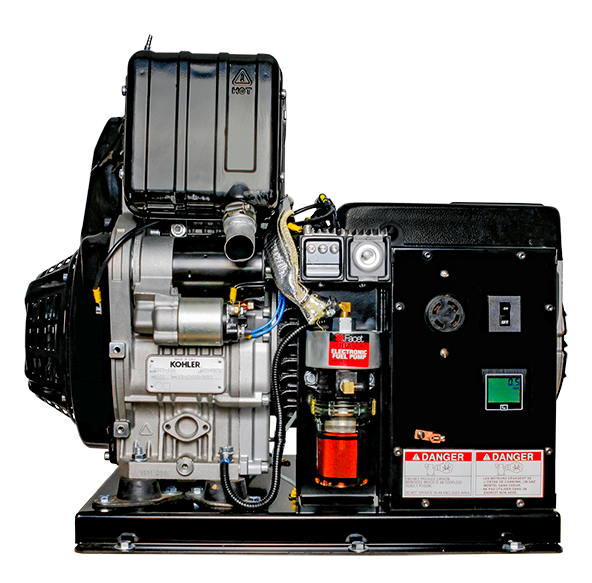

- Movable Panel and Fuel Pump - The panel and fuel pump can be installed on either side of the generator set to fit your application.
- YourGen Meter - LED meter displaying hours, RPMs, voltage, and freuency
readings. Verifies the load balance with a load bar display. Warnings when a parameter is outside of normal range and when an oil change is needed - 100% Load Tested - Every generator is fully tested prior to leaving Winco's facility.

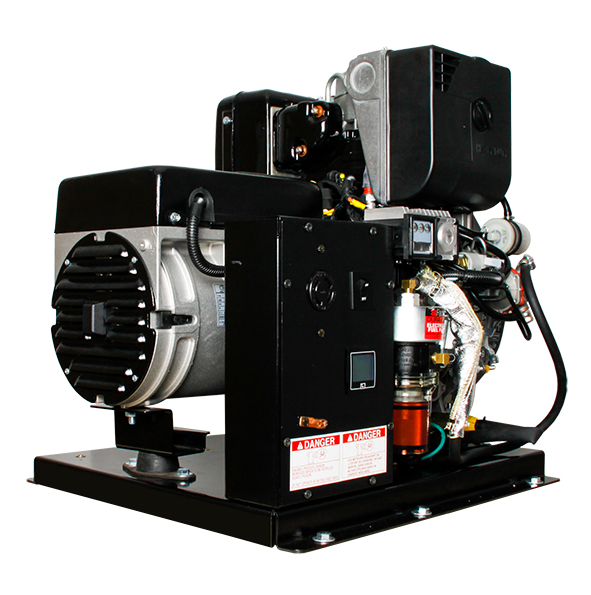

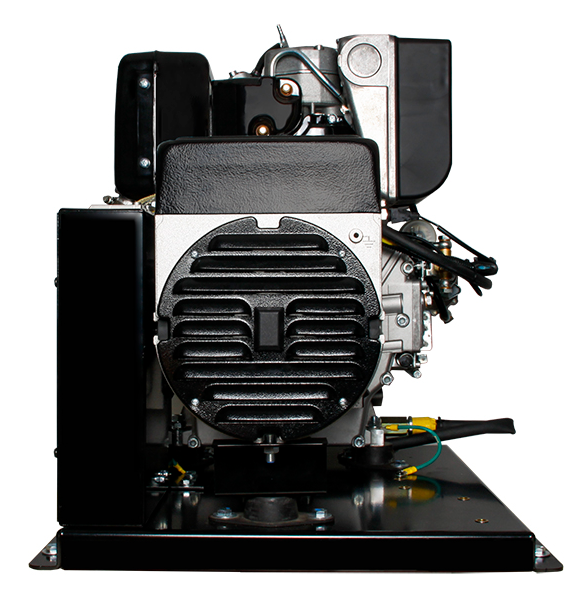

EC6010DR Generator Specifications
STARTING WATTS 6,010 RUNNING WATTS 5,160 RUNNING AMPS @ 120 VAC 43 RUNNING AMPS @ 240 VAC 21.5 VOLTAGE REGULATION AVR +/- 1% MAIN CIRCUIT BREAKER 30 AMP, 240V (GFCI) BONDED NEUTRAL YES 120/240 VOLT RECEPTACLES (1) NEMA L14-30 30A (GFCI) YOURGEN METER STANDARD MOTOR STARTING (CODE G) 2 HP DBA @ 7 METERS 87.6 TOTAL HARMONIC DISTORTION <6% INSULATION CLASS H PROTECTIVE ROLL FRAME 1.25" DIA 14 GAUGE STEEL ASSEMBLED IN USA EPA APPROVED YES CARB APPROVED NO CSA APPROVED NO UNIT WARRANTY 3 YEARS COMMERCIAL SHIPPING DIMENSIONS 32" x 24.25" x 24.4" SHIP WEIGHT 270 LBS FREIGHT CLASS 70 EC6010DR Engine Specifications
ENGINE BRAND KOHLER ENGINE MODEL KD440 ENGINE STARTER ELECTRIC/RECOIL ENGINE SPEED 3600 RPM ENGINE CYLINDERS SINGLE DISPLACEMENT/TYPE 440 CC / OVH FREQUENCY REGULATION +/- 3% LOW OIL PROTECTION STANDARD RECOMMENDED OIL 10W-30 OIL CAPACITY 1.3 QT FUEL CONSUMPTION GAL/HR @ 100% .50 FUEL CONSUMPTION GAL/HR @ 75% .39 FUEL CONSUMPTION GAL/HR @ 25% .30 FUEL CONSUMPTION GAL/HR @ 0% .18
Operating Manual Kohler KD440 Service Manual
Parts List
Outline Drawing
