Description
Features
- Honda GX690 Engine - You expect the best; you get the best. The Honda GX690 is better than ever. Including improved adaptability, quiet operation, and improved fuel economy.

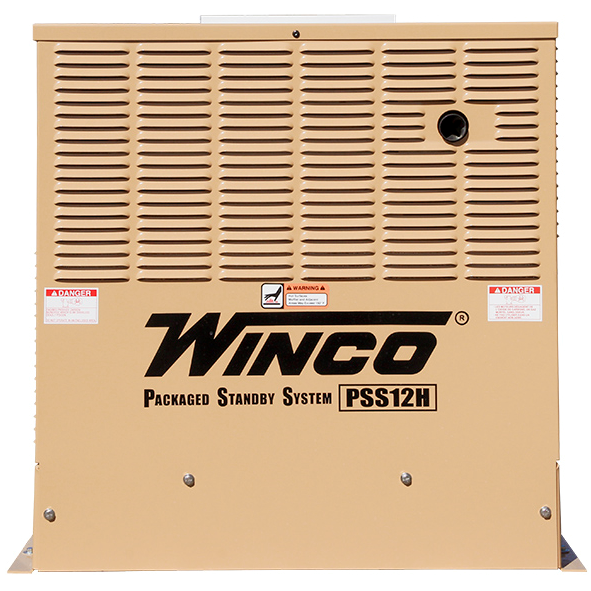

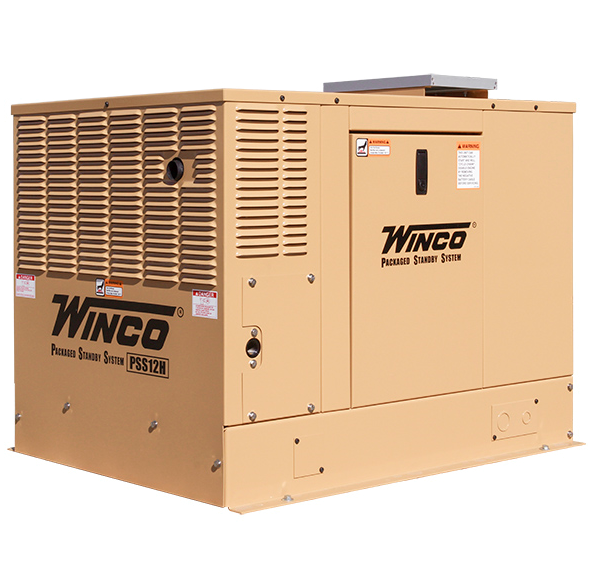

- Sure Flow Cooling System - The three cooling intakes provide exceptional air flow and reduced heatsoak.

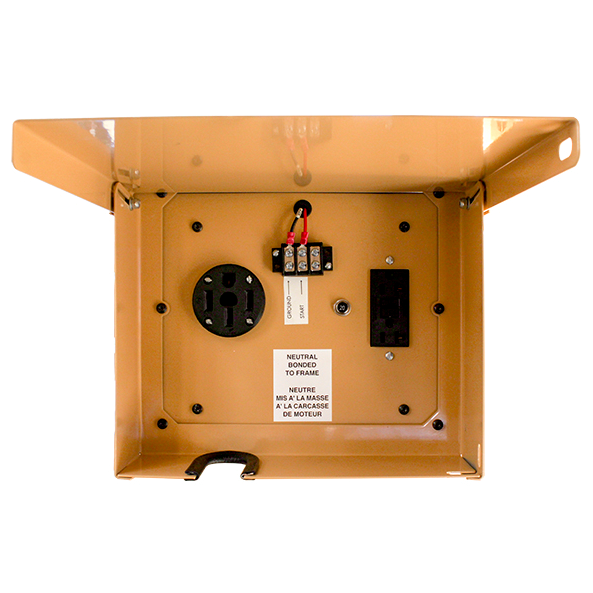

- DSE 3110 Digital Controller - Provides detailed operating and diagnostic information through its digital display.
- Prime Power Ready - This unit is appropriate for either Emergency Standby or Prime Power applications like powering remote water pumps.
- Battery Charger - A Guest 3 battery charger included.

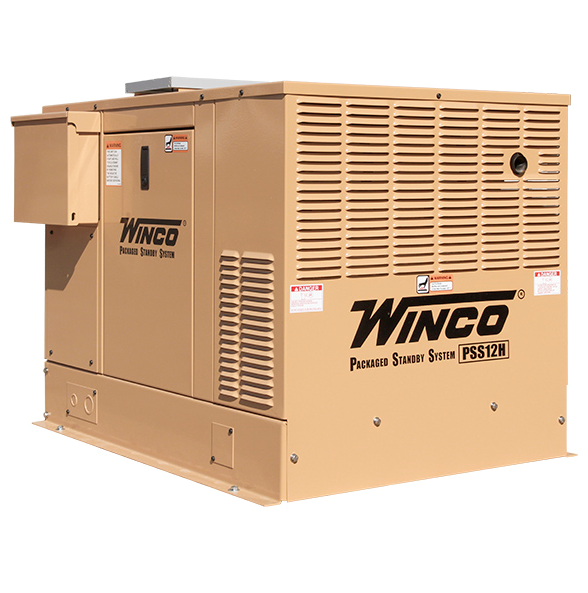

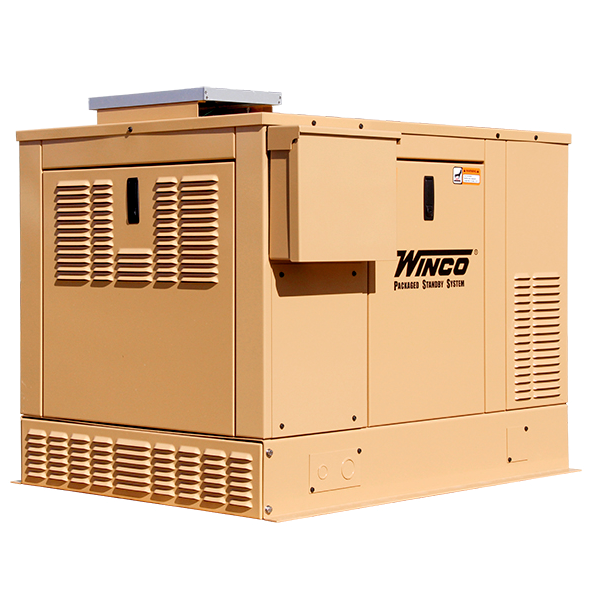

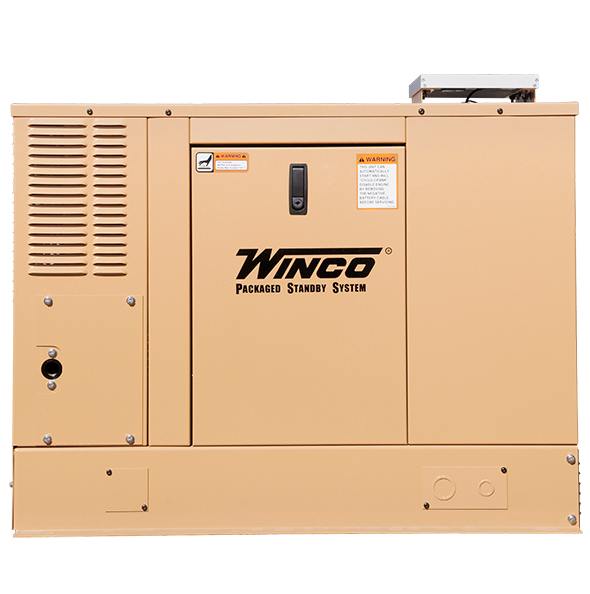

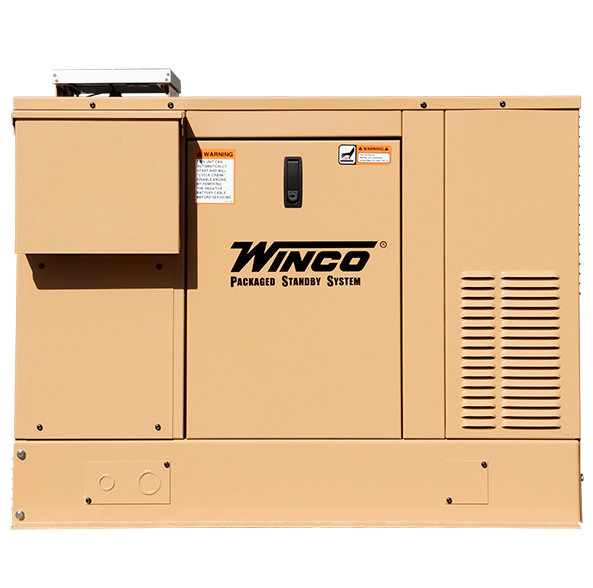

- Galvanealed Steel Weather Enclosure - Industrial galvanealed steel housing with powder-coat paint to withstand the elements.
- 100% Load Tested - No statistical sampling here. Winco load tests every generator before it leaves their facility.
PSS12 Generator Specifications
| VOLTAGE REGULATION | +/-5% |
| TOTAL HARMONIC DISTORTION | <5% |
| TEMPERATURE RISE | 125°/40° C |
| PHASE | SINGLE |
| TYPE | 2 POLE ROTATING FIELD |
| BRUSHLESS | YES |
| GENERATOR SPEED | 3600 RPM |
| VOLTAGE CONTROL | CAPACITOR |
| ROTOR | 2/3 PITCH |
| WINDINGS | 100% COPPER |
| LOAD ACCEPTANCE | 100% RATING/SINGLE STEP |
| SEALED BALL BEARINGS | 1 |
| WAVE DISTORTION | <1.5% |
| TELEPHONE INTERFERENCE | <2% |
| INSULATION | CLASS H |
| GENERATOR WARRANTY | 2 YEARS |
| SHIPPING DIMENSIONS | 48" x 33" x 35" |
| SHIP WEIGHT | 512 LBS |
| FREIGHT CLASS | 70 |
PSS12 Solar Genset Specifications
| MOTOR STARTING (CODE G) | 4 HP |
| PRIME APPLICATIONS | YES |
| STRUCTURAL CLEARANCE | 18" |
| CARB APPROVED | YES |
| EPA APPROVED | YES |
| CSA APPROVED | YES |
| UL2200 LISTED | YES |
| OUTPUT 120/240V LP GAS WATTS | 9,600 |
| OUTPUT 120/240V LP GAS KVA | 9.6 |
| OUTPUT 120/240V LP GAS AMPS | 50 |
| OUTPUT 120/240V NG GAS WATTS | 8,000 |
| OUTPUT 120/240V NG GAS KVA | 8 |
| OUTPUT 120/240V NG GAS AMPS | 41 |
| CIRCUIT BREAKER AMPS | 50 |
| WINCO WARRANTY | 1 YR / 1000 HRS |
PSS12 Sound Data
| LEFT | RIGHT | FRONT | BACK | LEFT | RIGHT | FRONT | BACK |
| 64.5 | 62.1 | 68.2 | 66.1 | 67.5 | 64.3 | 69.5 | 66.1 |
PSS12 2-Wire Control Features
| FAIL TO START | YES |
| FAIL TO STOP | YES |
| LOW OIL PRESSURE | YES |
| HIGH ENGINE OIL TEMP | YES |
| UNDER FREQUENCY/SPEED | YES |
| OVER FREQUENCY/SPEED | YES |
| LOW VOLTAGE | YES |
| HIGH VOLTAGE | YES |
| BATTERY OVER/UNDER VOLTAGE | YES |
| DIGITAL DISPLAY | YES |
PSS12 Engine Specifications
| BRAND | HONDA |
| MODEL | GX690 |
| SPEED | 3600 RPM |
| DISPLACEMENT | 668 CC/OHV |
| CYLINDERS | V-TWIN |
| LUBRICATION | FORCED W/SPIN-ON FILTER |
| IGNITION | ELECTRIC |
| GOVERNOR | MECHANICAL |
| REGULATION | +/- 1.8 HZ STEADY STATE |
| EXHAUST | CRITICAL GRADE, GLASS-PACK |
| LOW OIL PROTECTION | STANDARD |
| HIGH OIL TEMP PROTECTION | STANDARD |
| RECOMMENDED OIL | 10W-30 |
| OIL CAPACITY | 1.8 QTS |
| FUEL CONSUMPTION LP | 2.1 GAL/HR - 194,000 BTU/HR |
| FUEL TANK SIZING 60° F (16°C) | 150 GAL |
| FUEL TANK SIZING 32° F (0°C) | 250 GAL |
| FUEL TANK SIZING 0° F (-18°C) | 500 GAL |
| FUEL TANK SIZING -20° F (-29°C) | 1000 GAL |
| LINE SIZING UP TO 25' | 3/4" PIPE |
| LINE SIZING 25'-100' | 1" PIPE |
| LINE SIZING UP OVER 100' | USE A 2 REGULATOR SYSTEM |
| INLET PRESSURE | 4-6 OZ/7"-11" WATER COLUMN |
| ENGINE WARRANTY | 3 YRS |
PSS12 Derating Factors
| TEMPERATURE >104°F | 3% PER 10°F |
| ALTITUDE | 3% PER 1000 Ft |
| PRIME POWER | 20% |
| MAX OPERATING TEMP | 122°F / 50°C |
