Description
Features
- Briggs & Stratton Vanguard Engine - Premium-grade Vanguard engines are application engineered to power equipment that works for a living.
- Sure Flow Cooling System - The three cooling intakes provide exceptional air flow and reduced heat soak.
- DSE 3110 Digital Controller - Provides detailed operating and diagnostic information through its digital display.
- Prime Power Ready - This unit is appropriate for either Emergency Standby or Prime Power Applications like powering remote water pumps.
- Battery Charger - A Guest 3-Stage battery charger included
- 100% Load Tested - No statistical sampling here. Winco load tests every generator before it leaves their facility.
- Galvanealed Steel Weather Enclosure - Industrial galvanealed steel housing with powder-coat paint to withstand the elements.

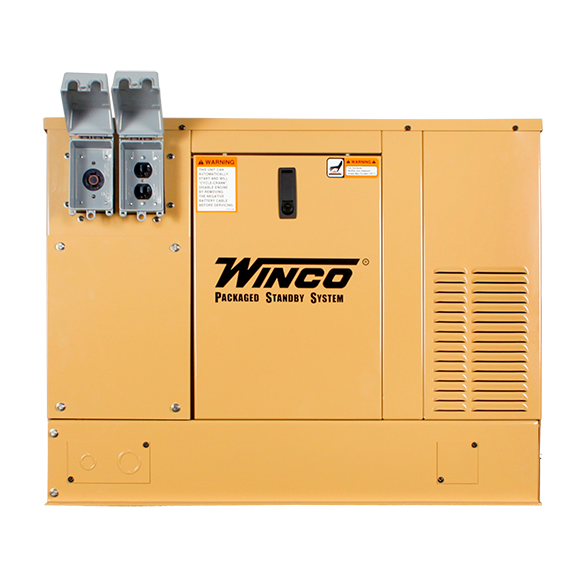

- Solar Panel Charger & External Receptacles - 12V Solar panel charger with L-14-20 20 Amp and 5-20 20 Amp duplex receptacles externally mounted in weather-proof enclosures for off grid applications.
PSS8 Generator Specifications
VOLTAGE REGULATION +/-5%
TOTAL HARMONIC DISTORTION <5%
TEMPERATURE RISE 125°/40° C
PHASE SINGLE
TYPE 2 POLE ROTATING FIELD
BRUSHLESS YES
GENERATOR SPEED 3600 RPM
VOLTAGE CONTROL CAPACITOR
ROTOR 2/3 PITCH
WINDINGS 100% COPPER
LOAD ACCEPTANCE 100% RATING/SINGLE STEP
SEALED BALL BEARINGS 1
WAVE DISTORTION <1.5%
TELEPHONE INTERFERENCE <2%
INSULATION CLASS H
GENERATOR WARRANTY 2 YEARS
SHIPPING DIMENSIONS 45" x 31" X32"
SHIP WEIGHT 400 LBS
FREIGHT CLASS 70
PSS8 Solar Genset Specifications
MOTOR STARTING (CODE G) 3 HP
PRIME APPLICATIONS YES
STRUCTURAL CLEARANCE 18"
EPA APPROVED YES
CARB APPROVED YES
CSA APPROVED YES
UL2200 LISTED YES
OUTPUT 120/240 1PH LP GAS WATTS 6,720
OUTPUT 120/240 1PH LP GAS KVA 6.72
OUTPUT 120/240 1PH LP GAS AMPS 35
OUTPUT 120/240 1PH NG GAS WATTS 6,080
OUTPUT 120/240 1PH NG GAS KVA 6.08
OUTPUT 120/240 1PH NG GAS WATTS 32
CIRCUIT BREAKER AMPS 35
WINCO WARRANTY 1 YR/1000 HRS
PSS8 Sound Data
NO LOAD FULL LOAD
LEFT RIGHT FRONT BACK LEFT RIGHT FRONT BACK
63.2 64.4 66.4 63.8 64.9 65.3 68.5 65.3
PSS8 2-Wire Control Features
FAIL TO START YES
FAIL TO STOP YES
LOW OIL PRESSURE YES
HIGH ENGINE OIL TEMP YES
UNDER FREQUENCY/SPEED YES
OVER FREQUENCY/SPEED YES
LOW VOLTAGE YES
HIGH VOLTAGE YES
BATTERY OVER/UNDER VOLTAGE YES
DIGITAL DISPLAY YES
PSS8 Engine Specifications
BRAND BRIGGS & STRATTON
MODEL VANGUARD
SPEED 3600 RPM
DISPLACEMENT 570 CC/OHV
CYLINDERS V-TWIN
LUBRICATION FORCED W/SPIN-ON FILTER
IGNITION ELECTRIC
GOVERNOR MECHANICAL
REGULATION +/-1.8 HZ STEADY STATE
EXHAUST CRITICAL GRADE, GLASS-PACK
LOW OIL PROTECTION STANDARD
HIGH OIL TEMP PROTECTION STANDARD
RECOMMENDED OIL 10W-30
OIL CAPACITY 1.5 QTS
FUEL CONSUMPTION LP 1.6 GAL/HR - 158,760 BTU/HR
FUEL CONSUMPTION NG 132 FT³/HR - 132,000 BTU/HR
FUEL TANK SIZING 60°F (16° C) 150 GAL
FUEL TANK SIZING 32°F (0° C) 150 GAL
FUEL TANK SIZING 0°F (-18° C) 250 GAL
FUEL TANK SIZING -20°F (-29° C) 500 GAL
LINE SIZING UP TO 25' 3/4" PIPE
LINE SIZING UP TO 25' TO 100' 1" PIPE
LINE SIZING OVER 100' USE A 2 REGULATOR SYSTEM
INLET PRESSURE 4-6 OZ / 7"-11" WATER COLUMN
ENGINE WARRANTY 3 YRS
PSS8 Battery Specifications
DC SYSTEM VOLTAGE 12V
DC ALTERNATOR ENGINE MOUNTED
BATTERY RACK/CABLES INCLUDED
BATTERY CHARGER 3 STAGE INCLUDED
REQUIRED BATTERY(1) GROUP 26 500 CCA
Notes: (1) Battery Not Included
