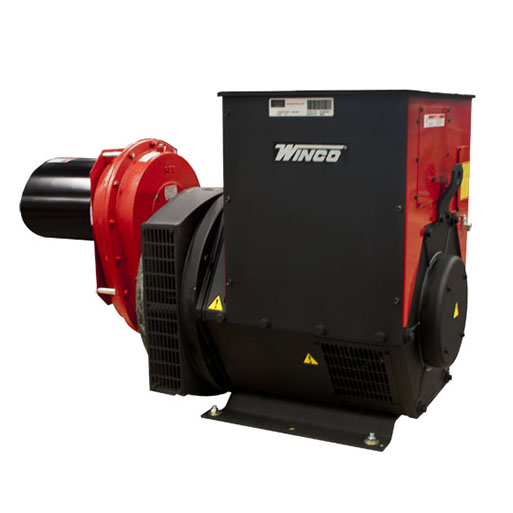

Winco PTO 105 kW Generator

$12,797.20

Today, WINCO offers PTO Generators in sizes ranging from 15kW through 150kW.  From the hobby farmer to the large livestock producer there is no need to look any further than WINCO for the largest selection of PTO models in the industry. This product line of PTO generators is complete with single-phase generators ranging in output from 15kW 150kW and three-phase generators from 40kW-145kW.



Price Includes Freight to a Business Address – The customer is responsible for unloading merchandise upon delivery.



Printable Brochures:

W105FPTOT-4 120/208

W105FPTOT-17 120/240

PTO Shaft 20 Spline

PTO Shaft 21 Spline

Square D Transfer Switch



Voltage (Must Choose One)

Drive Shaft (Optional)

Provides rotary power from the tractor to stationary or pulled machinery.

Trailer Kit (Optional)

This 2 wheel off-road trailer allows you to easily move your PTO generator around to different location when necessary. Trailer comes with 15″ steel rims, tires not included.

Manual Transfer Switch (Optional)

UL Square D manual transfer switch comes in 100 or 200 amp, three-phase in a NEMA 3R enclosure.

Compare

Description

Electrical Specifications - Three Phase 120/240 Volt or 120/208 Volt

  • Power Rating - Continuous Watts - 120/240 Volt
    • 105,000
  • A.C. Output Voltage
    • 120/240
  • Phase, Frequency
    • 3-Phase, 60 hz
  • Amps (continuous)
    • 314 Per Phase
  • Motor Starting
    • 40 HP
  • Generator Speed
    • 1800 RPM
  • Power Rating - Continuous Watts - 120/208 Volt
    • 105,000
  • A.C. Output Voltage
    • 120/208
  • Phase, Frequency
    • 3-Phase, 60 hz
  • Amps (continuous)
    • 364 Per Phase
  • Motor Starting
    • 40 HP
  • Generator Speed
    • 1800 RPM

Power Input Panel

  • Tractor HP Required
    • 210
  • PTO Input Speed
    • 1000 RPM
  • Input Shaft
    • 1 3/4" 20-spline (208v) or 1 3/8" 21-spline (240v)

Power Output Panel

  • 120 Volt Outlet
    • (1) 20 Amp Nema 5-20R Duplex
  • 240 Volt Outlet
    • (1) 50 Amp Nema 6-50R
  • Full Power Anderson Outlet - 350 amps
  • Main Breaker
    • 350 Amp

Size & Weight

  • Dimensions
    • L 47 x W 21.2 x H 30.4
  • Net Weight
    • 1206 Lbs
  • Shipping Dimensions
    • L 55.25 x W 28.5 x H 36
  • Shipping Weight
    • 1216 Lbs

Warranty - 3 Years

Additional information

Weight 1216 lbs
Dimensions 55 × 29 × 36 in
