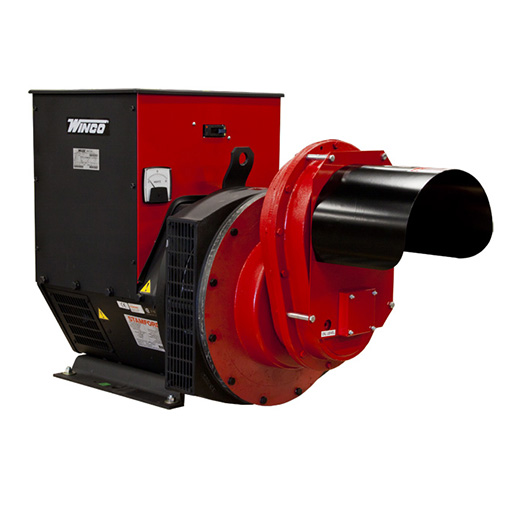

Winco PTO 165 kW Generator

$14,628.00

Today, WINCO offers PTO Generators in sizes ranging from 15kW through 150kW.  From the hobby farmer to the large livestock producer there is no need to look any further than WINCO for the largest selection of PTO models in the industry. This product line of PTO generators is complete with single-phase generators ranging in output from 15kW 150kW and three-phase generators from 40kW-145kW.



Price Includes Freight to a Business Address – The customer is responsible for unloading merchandise upon delivery.



Printable Brochures:

W165FPTOT-18

PTO Shaft

Square D Transfer Switch



Drive Shaft (Optional)

Provides rotary power from the tractor to stationary or pulled machinery.

Trailer Kit (Optional)

This 2 wheel off-road trailer allows you to easily move your PTO generator around to different location when necessary. Trailer comes with 15″ steel rims, tires not included.

Compare

Description

Electrical Specifications - Three Phase 277/480

  • Power Rating - Continuous Watts
    • 165,000
  • A.C. Output Voltage
    • 277/480
  • Phase, Frequency
    • 3-Phase, 60 hz
  • Amps (continuous)
    • 248 Per Phase
  • Motor Starting
    • 70 HP
  • Generator Speed
    • 1800 RPM

Power Input Panel

  • Tractor HP Required
    • 290
  • PTO Input Speed
    • 1000 RPM
  • Input Shaft
    • 1 3/4" 20-spline or 1 3/8" 21-spline

Power Output Panel

  • Full Power Anderson Outlet - 350 amps
  • Main Breaker
    • 250 Amp

Size & Weight

  • Dimensions
    • L 47 x W 27 x H 30.2
  • Net Weight
    • 1494 Lbs
  • Shipping Dimensions
    • L 55.25 x W 28.5 x H 36
  • Shipping Weight
    • 1504 Lbs

Warranty - 3 Years

Additional information

Weight 1504 lbs
Dimensions 55 × 29 × 36 in
