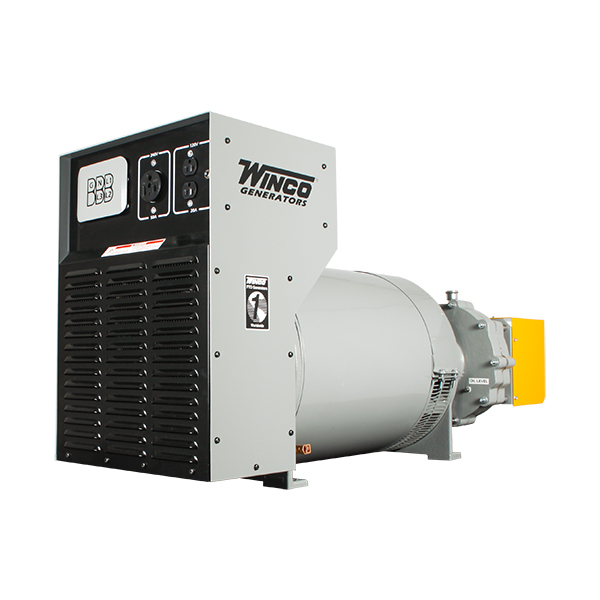

Winco PTO 70kW Generator

$7,642.00

The 75FPTOC-4 and the 75FPTOC-17 both offer 75kW of power and require a 150 HP tractor to run. The 75FPTOC-4 is a three-phase unit (120/208V) with 1000 input RPM. The 75FPTOC-17 is also a three-phase (120/240V) unit with 1000 input RPM. Both operate at 1800 RPM and are built to last.



Price Includes Freight to a Business Address – The customer is responsible for unloading merchandise upon delivery.



Printable Brochures:

75FPTOC-4 120/208

75FPTOC-17 120/240

PTO Shaft

Square D Transfer Switch



Voltage (Must Choose One)

Drive Shaft (Optional)

Provides rotary power from the tractor to stationary or pulled machinery.

Trailer Kit (Optional)

This 2 wheel off-road trailer allows you to easily move your PTO generator around to different location when necessary. Trailer comes with 15″ steel rims, tires not included.

Manual Transfer Switch (Optional)

UL Square D manual transfer switch comes in 100 or 200 amp, three-phase in a NEMA 3R enclosure.

Compare

Description

Electrical Specifications - Three Phase 120/240 Volt or 120/208 Volt

  • Power Rating - Continuous Watts - 120/240 Volt
    • 70,000
  • A.C. Output Voltage
    • 120/240
  • Phase, Frequency
    • 3-Phase, 60 hz
  • Amps (continuous)
    • 180 Per Phase
  • Motor Starting
    • 40 HP
  • Generator Speed
    • 1800 RPM
  • Power Rating - Continuous Watts - 120/208 Volt
    • 70,000
  • A.C. Output Voltage
    • 120/208
  • Phase, Frequency
    • 3-Phase, 60 hz
  • Amps (continuous)
    • 208 Per Phase
  • Motor Starting
    • 40 HP
  • Generator Speed
    • 1800 RPM

Power Input Panel

  • Tractor HP Required
    • 140
  • PTO Input Speed
    • 1000 RPM
  • Input Shaft
    • 1-3/8" six spline

Power Output Panel

  • 120 Volt Outlet
    • (1) 20 Amp Nema 5-20R
  • 240 Volt Outlet
    • (1) 60 Amp Nema 6-60R
  • Full Power Anderson Outlet
  • Main Breaker
    • 200 Amp

Size & Weight

  • Dimensions
    • L 44 x W 23 x H 20
  • Net Weight
    • 728 Lbs
  • Shipping Dimensions
    • L 50 x W 29 x H 28
  • Shipping Weight
    • 742 Lbs

Warranty - 3 Years

Additional information

Weight 742 lbs
Dimensions 44 × 23 × 20 in
