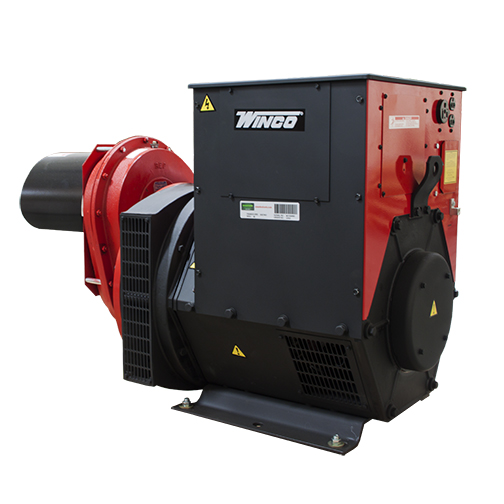

Winco PTO 85 kW Generator

$10,690.40

WINCO PTO generators have saved individuals, farms, and businesses millions of dollars in lost revenue. Don’t wait until it is too late to discover the value WINCO PTO generators provide.

WINCO produces some of the largest and most durable PTO generators on the market. The base of each PTO generator 85 kW to 165 kW is an industrial grade Stamford two-bearing generator. Our large gear case is built strong enough to handle the heavy stresses that agricultural loads place on the generator system. A Square D thermal magnetic circuit breaker provides overload protection and frequency meter makes it easy to adjust the generator output from the tractor.

WINCO generator systems are also inexpensive to maintain. Sealed maintenance free bearings keep the rotor shaft turning smoothly year after year. The only regular maintenance required is to check the gear oil level and to run the generator occasionally to keep the internal windings clean and dry.



Price Includes Freight to a Business Address – The customer is responsible for unloading merchandise upon delivery.



Printable Brochures:

W85FPTOS

PTO 20 Spline Shaft

PTO 21 Spline Shaft

Square D Transfer Switch



Drive Shaft (Optional)

Provides rotary power from the tractor to stationary or pulled machinery.

Trailer Kit (Optional)

2 wheel off-road trailer allows you to easily move your PTO generator around to different locations if needed. Trailer comes with 15″ steel rims, tires not included.

Manual Transfer Switch

UL Square D manual transfer switch comes in 100 or 200 amp, single-phase in a NEMA 3R enclosure.

Compare

Description

 Electrical Specifications - Single Phase 120/240 Volt

  • Power Rating - Continuous Watts
    • 85,000
  • A.C. Output Voltage
    • 120/240
  • Phase, Frequency
    • 1-Phase, 60 hz
  • Amps (continuous)
    • 354 Per Phase
  • Motor Starting
    • 35 HP
  • Generator Speed
    • 1800 RPM

Power Input Panel

  • Tractor HP Required
    • 170
  • PTO Input Speed
    • 1000 RPM
  • Input Shaft
    • 1-3/4" twenty spline

Power Output Panel

  • 120 Volt Outlet
    • (1) 20 Amp Nema 5-20R Duplex
  • 240 Volt Outlet
    • (1) 50 Amp Nema 6-50R
  • Full Power Anderson Outlet - 350 amps
  • Main Breaker
    • 350 Amp

Size & Weight

  • Dimensions
    • L 49 x W 18 x H 27.3
  • Net Weight
    • 1056 Lbs
  • Shipping Dimensions
    • L 55.25 x W 28.5 x H 32.25
  • Shipping Weight
    • 1066 Lbs

Warranty - 3 Years

Additional information

Weight 1066 lbs
Dimensions 55.25 × 28.5 × 32.25 in
