Description
FEATURES
- Rugged Design - WINCO gearcases have proven their strength
and durability for over 60 years and will keep doing so into the future. - Low Harmonic Content - Provides clean power for both farm and home.

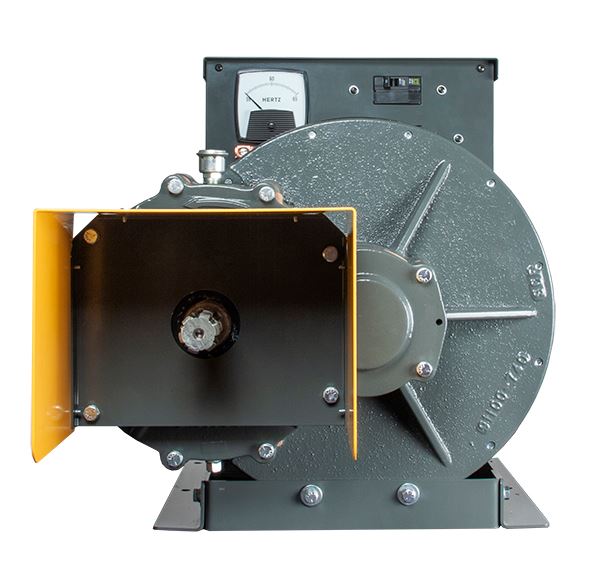

- Frequency Meter - A large 3 1/2″ frequency meter ensures the proper output.
- Premium Circuit Breakers - Providing clear and instant identification of a tripped circuit.
- Protective PTO Shield - Safety is Always a priority.
- 5 Wire Anderson Full Power Plug Included
- 100% Load Tested - You won't find any statistical sampling here. Every generator is fully tested prior to leaving Winco's facility.

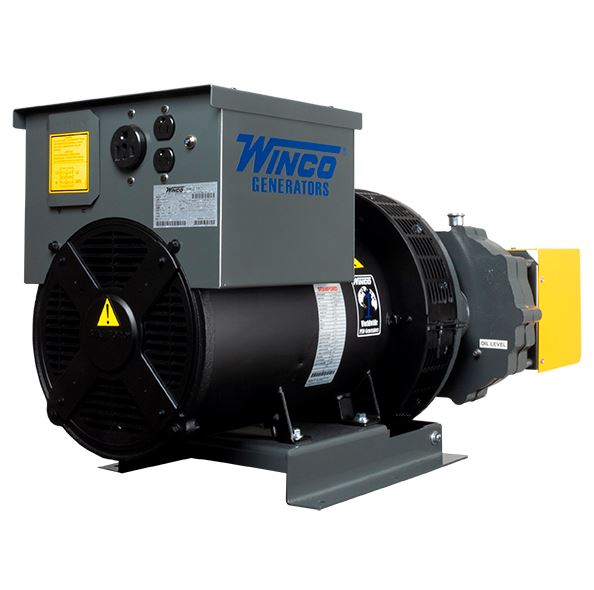

27PTOC-3 (540RPM) Generator Specifications
STANDBY WATTS 27,600
CONTINUOUS WATTS 23,500
STANDBY AMPS 115
CONTINUOUS AMPS 98
OUTPUT 120/240V
PHASE SINGLE
PTO INPUT SPEED 540 RPM
INPUT SHAFT SIZE 1 3/8" - 6 SPLINE
REQUIRE INPUT HP FOR FULL POWER 54
MOTOR STARTING (CODE G) 10 HP
FREQUENCY METER STANDARD
MAIN CIRCUIT BREAKER 125 AMP
NEUTRAL BONDED YES
GROUND LUG YES
GEARCASE OIL SAE 85W 90-140
GEARCASE OIL CAPACITY 1 PINT
WARRANTY 3 YRS
SHIPPING DIMENSIONS 43.5" x 27" x 26"
SHIPPING WEIGHT 452 LBS
FREIGHT CLASS 65
27PTOC-3 (540RPM) Generator End Specifications
Printable Brochures:
SINGLE PHASE 4 LEAD WINDING NUMBER 706
AVR AS540 - AUX WINDING
VOLTAGE REGULATION +/- 1%
TOTAL HARMONIC DISTORTION <5%
GENERATOR SPEED 1800 RPM
STATOR WINDING DOUBLE LAYER CONCENTRIC
ROTOR 2/3 PITCH
TELEPHONE INTERFACE SINGLE PHASE TIF <75
INSULATION CLASS H
120 VOLT RECEPTACLES (2) NEMA 5-20 20A
240 VOLT RECEPTACLES (1) NEMA 6-50 50A
FULL POWER ANDERSON RECEPTACLE 175 AMPS
FULL POWER ANDERSON PLUG INCLUDED
