Description
Generator Features
- Ford 2.5L Engine - The 4 cylinder, overhead valve engine meets EPA/CARB emission regulations.
- Stamford Generator End - The s series has a 3 year warranty on the generator end and includes auxiliary winding standard with short circuit capability.
- Premium Circuit Breakers - Dependable circuit breaker protection.
- Battery Charger - Factory installed 5 stage, 5 Amp battery charger.
- Block Heater - In-Line Hotstart, 120V, block heater with thermostat.
- DSE 7310 Controller - The DSE7310 is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual user-friendly format.

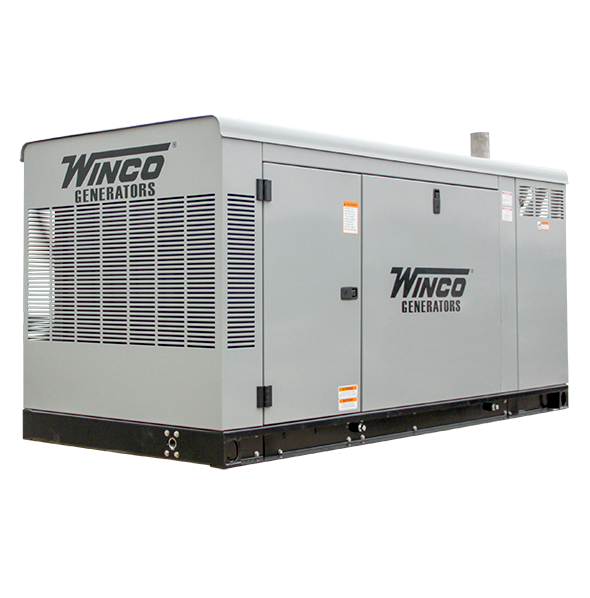

- Galvanealed Steel Weather Enclosure - Our weather enclosures provide sound reduction while our powder coat paint provides a durable, long lasting finish.
- 100% Load Tested - You won't find statistical sampling here. Winco load tests every generator before it leaves the factory.
PSS21 Generator Specifications
| MOTOR STARTING (CODE G) | 7 HP |
| DBA @ 7 METERS | 75 |
| TOTAL HARMONIC DISTORTION | <5% |
| FLOATING NEUTRAL | YES |
| ASSEMBLED IN | USA |
| UL CERTIFICATION | UL2200 LISTED |
| EPA APPROVED | YES |
| CSA APPROVED | YES |
| UNIT WARRANTY | 2 YR/2000 HRS |
| SHIPPING DIMENSIONS | 86" x 40" x 51" |
| SHIP WEIGHT | 1,570 LBS |
| FREIGHT CLASS | 70 |
PSS21 Gen End Specifications
| WINDINGS SINGLE PHASE | 4 LEAD |
| WINDINGS THREE PHASE | 12 LEAD |
| WINDING NUMBER SINGLE PHASE | 706 |
| WINDING NUMBER THREE PHASE | 711 |
| VOLTAGE REGULATION | AVR +/-1% |
| AVR TYPE | AS540 |
| TEMPERATURE RISE | 125°/40° C |
| TYPE | REVOLVING FIELD |
| BRUSHLESS | YES |
| GENERATOR SPEED | 1800 RPM |
| ROTOR | 2/3 PITCH |
| WINDINGS | 100% COPPER |
| STATOR WINDING 706 | SINGLE LAYER CONCENTRIC |
| STATOR WINDING 711 | DOUBLE LAYER CONCENTRIC |
| COUPLING | DIRECT/FLEXIBLE DISC |
| BEARINGS | SINGLE (maintenance free) |
| EFFICIENCY PEAK SINGLE PHAS1.0 PF | 79.6 |
| EFFICIENCY PEAK THREE PHASE 0.8 PF | 87.7 |
| INSULATION | CLASS H |
| INGRESS PROTECTION | IP23 |
PSS21 Engine Specifications
| ENGINE MANUFACTURER | FORD |
| ENGINE MODEL | MSG-425 |
| ENGINE STARTER | 12V ELECTRIC |
| ENGINE SPEED | 1800 |
| ENGINE CYLINDERS | 4 |
| HP RATING NG | 47 |
| HP RATING LP | 49 |
| FREQUENCY | 60 HZ |
| TORQUE NG | 137 FT/LBS |
| TORQUE LP | 140 FT/LBS |
| ALTERNATOR | 95 AMPS |
| FLYWHEEL | 10" |
| ROTATION | CCW |
| ASPIRATION | NATURAL |
| EXHAUST OUTLET | 3" |
| BORE/STROKE | 89 mm x 100 mm |
| DISPLACEMENT/TYPE | 2.5 L |
| LOW OIL PROTECTION | STANDARD |
| RECOMMENDED OIL | 5W-20 SAE |
| OIL CAPACITY | 7 QT |
| GOVERNOR | ELECTRONIC |
| COMPRESSIONS RATIO | 9.1:1 |
| FAN TYPE | PUSHER |
| COOLANT CAPACITY | 6.6 QT |
| HIGH COOLANT TEMP PROTECTION | STANDARD |
| COMBUSTION AIR | 67.54 CFM |
| RADIATOR COOLING AIR | 4420 CFM |
| FUEL INLET PRESSURE | 4-6 OZ / 7-11" WATER COLUMN |
| FUEL INLET SIZE | 3/4" |
| FUEL CONSUMPTION NG 100% LOAD | 261 FT³/HR - 264,915 BTU/HR |
| FUEL CONSUMPTION NG 75% LOAD | 214 FT³/HR - 217,210 BTU/HR |
| FUEL CONSUMPTION NG 50% LOAD | 166 FT³/HR - 168,490 BTU/HR |
| FUEL CONSUMPTION NG 25% LOAD | 119 FT³/HR - 120,785 BTU/HR |
| FUEL CONSUMPTION NG 0% LOAD | 71 FT³/HR - 72,065 BTU/HR |
| FUEL CONSUMPTION LP 100% LOAD | 2.9 GAL/HR - 263.900 BTU/HR |
| FUEL CONSUMPTION LP 75% LOAD | 2.4 GAL/HR - 218,400 BTU/HR |
| FUEL CONSUMPTION LP 50% LOAD | 1.9 GAL/HR - 172,900 BTU/HR |
| FUEL CONSUMPTION LP 25% LOAD | 1.4 GAL/HR - 127,400 BTU/HR |
| FUEL CONSUMPTION LP 0% LOAD | 0.9 GAL/HR - 81,900 BTU/HR |
PSS21 Battery Specifications
| DC SYSTEM VOLTAGE | 12V |
| DC ALTERNATOR | ENGINE MOUNTED |
| BATTERY RACK/CABLES | INCLUDED |
| BATTERY CHARGER | 5 AMP INCLUDED |
| REQUIRED BATTERY(1) | GROUP 24 650 CCA |
| Notes:(1) | Battery Not Included |
PSS21 Electrical Specifications
BREAKER AMPS |
||||||||
PSS21 Derating Factors
| ABOVE SEA LEVEL PER 1,000 FT | 4% |
| TEMPERATURE EVERY 42°F ABOVE 77°F | 2% |
DSE 7310 Controller
ENGINE DISPLACEMENT/PROTECTION |
|
| ENGINE RPM | YES |
| LOW OIL PRESSURE | YES |
| HIGH COOLANT TEMP | YES |
| LOW COOLANT TEMP | OPTIONAL |
| OVER/UNDER SPEED | YES |
| OVER CRANK | YES |
| CAN ECU SHUTDOWN | YES |
| ENGINE MAINTENANCE CODES | YES |
GENSET DISPLAY/PROTECTION |
|
| VOLTAGE (L-N & L-L) | YES |
| OVER/UNDER VOLTAGE | YES |
| FREQUENCY | YES |
| OVER/UNDER FREQUENCY | YES |
| AMP DISPLAY/SHUTDOWN | YES |
| PHASE IMBALANCE | DISABLED |
| KW, KVA, KVAR DISPLAY | YES |
| KWH, KVAH, KVARH DISPLAY | YES |
| GENERATOR PHASE SEQUENCE | OPTIONAL |
ADDITIONAL DISPLAYS/PROTECTIONS |
|
| EXTERNAL E-STOP | CUSTOMER SUPPLIED |
| BATTERY VOLTAGE | YES |
| BATTERY OVER/UNDER VOLTAGE | YES |
COMMUNICATIONS |
|
| USB CONNECTABLE | YES |
| RS232/RS485 | YES |
| REMOTE DISPLAY PANEL | OPTIONAL |
| DSE WEB NET | OPTIONAL |
ADDITIONAL FEATURES |
|
| AUDIBLE ALARM | YES |
| ENGINE EXERCISER | DISABLED |
| MAINTENANCE INTERVAL TIMER | DISABLED |
| LOAD SHEDDING/DUMMY | DISABLED |
| CONFIGURABLE INPUTS | 4 (EXPANDABLE) |
| CONFIGURABLE OUTPUTS | 4 (EXPANDABLE) |
| EVENT LOG | 250 |
