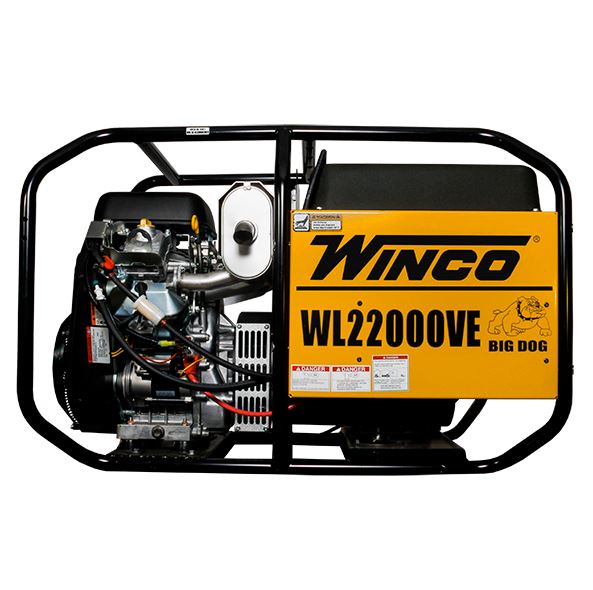

Winco WL22000VE Portable Generator


The Big Dog just got bigger. The WL22000VE has the most power output in its class.

Dolly Kit

Winco All-Terrain 4-Wheel Dolly Kit is designed for use with generator models WL12000HE-03/A, WL12000HE-03/B, WL18000VE-03/A . Ships ready to assemble. Four wheel dolly kit accessory has the same rugged durability as our 2-wheel kit, but with the easy mobility of 4 wheels.

Plug-In Line Voltage Monitor

Plug-in Line Voltage Monitor is a compact voltmeter that can be plugged into the 120-volt receptacle on any WINCO generator to assure you that your generator is functioning properly.



Battery Trickle Charger

Battery Trickle Charger to ensure the battery is fully charged when you need it most.

Maintenance Kit

Every kit includes a NAPA Air Filter, a Bosch Spark Plug (some kits include 2), NAPA 10W-30 Motor Oil, and a Mechanic’s Cloth. Oil filter and Sta-Bil included certain kits.



Delivery Fees *

Delivery Fees to Continental US

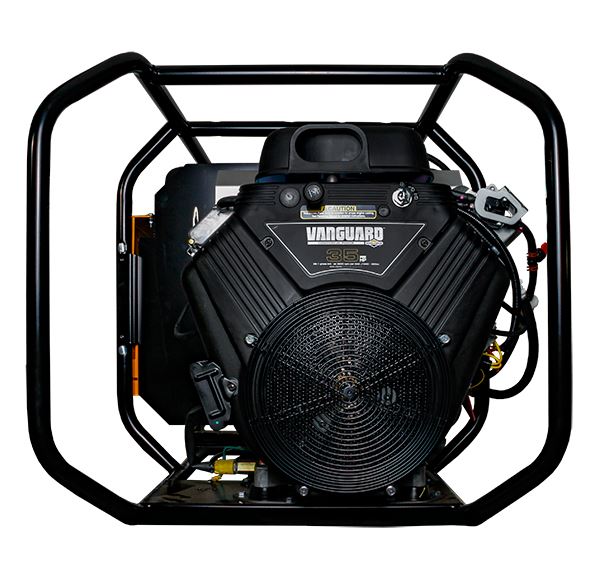

  • Briggs & Stratton Vanguard Engine - Premium grade Vanguard engines are application engineered to power equipment that works for a living.
  • Low Oil Protection - In the event there is a low oil level, the engine will shut down to protect the engine from damage.
  • YourGen Meter - LED meter displaying hours, RPMs, voltage, and frequency  readings. Verifies the load balance with a load bar display.  Warnings when a parameter is outside of normal range and when an oil change is needed.
  • Powder Coat Paint: For an incredibly durable finish.
  • Sturdy Wrap-Around Cradle - 14 Gauge, welded, tubular steel provides industrial strength support.
  • Premium Circuit Breakers - Provides a clear and instant indication of a tripped circuit.
  • 100% Load Tested -You won’t find statistical sampling here.  Every generator is fully load tested prior to leaving Winco's facility.


Starting Watts                                          16,000
Running Watts                                         14,000
Running Amps                                         116/58
Voltage Output                                         120/240 Volt Single Phase
Voltage Regulation                                  Capacitor
120 Volt Receptacles                              (3) NEMA 5-20R (GFCI) Duplex
120/240 Volt Receptacle                       (1) C6365 50 Amp T-L
240 Volt Receptacle                                (2) L6-30R 30 Amp (GFCI)
Engine Brand                                           Honda
Fuel                                                            Gasoline
Emissions                                                 EPA Prime
Dimensions                                              39.6” x 26.5” x 26”
Weight                                                      504 lbs
Unit Warranty                                         3 Years Commercial
Assembled In                                           USA


Please ensure you read and agree with the return policy:

Additional information

Weight 504 lbs
Dimensions 43.5 × 31 × 37 in

FREE Freight to a Business Address – The customer is responsible for unloading merchandise upon delivery.
