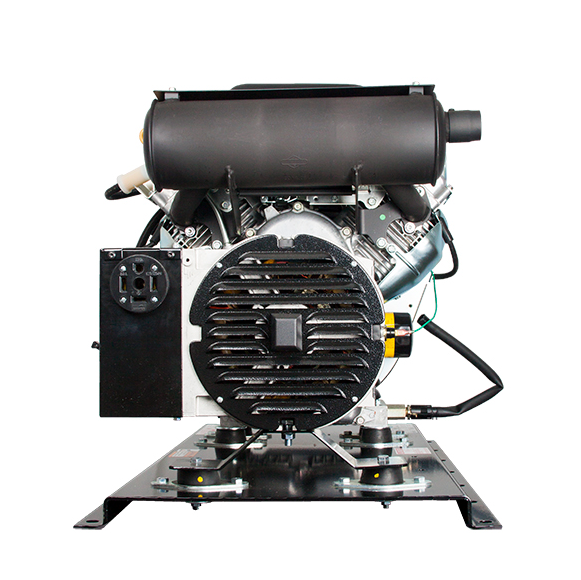

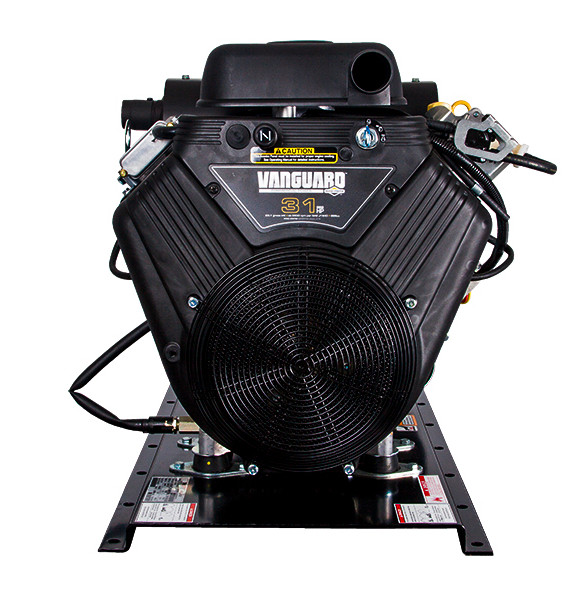

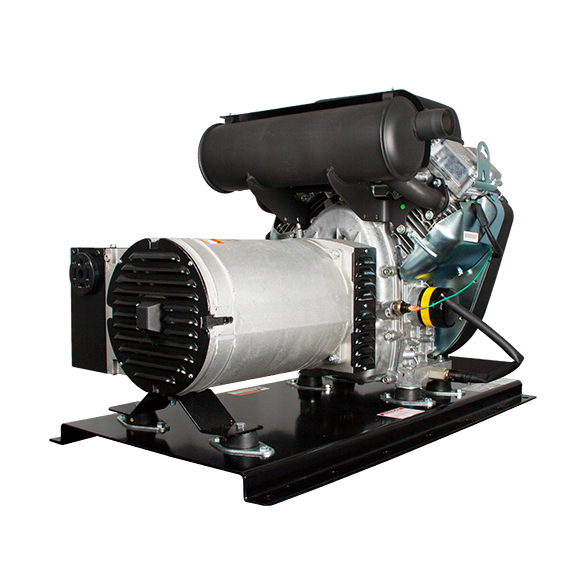

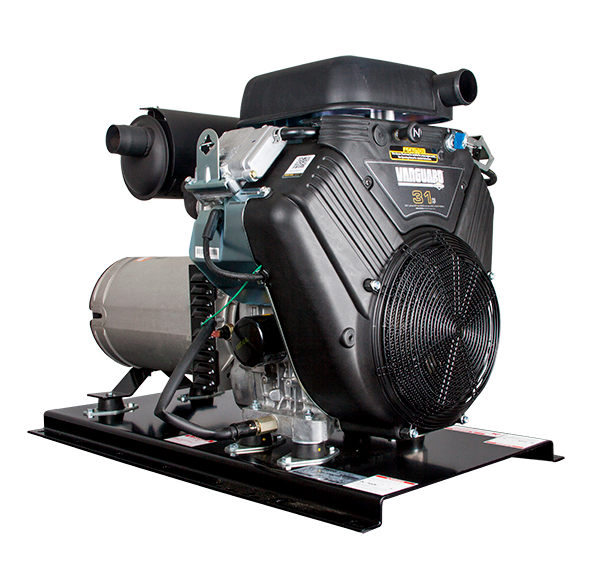

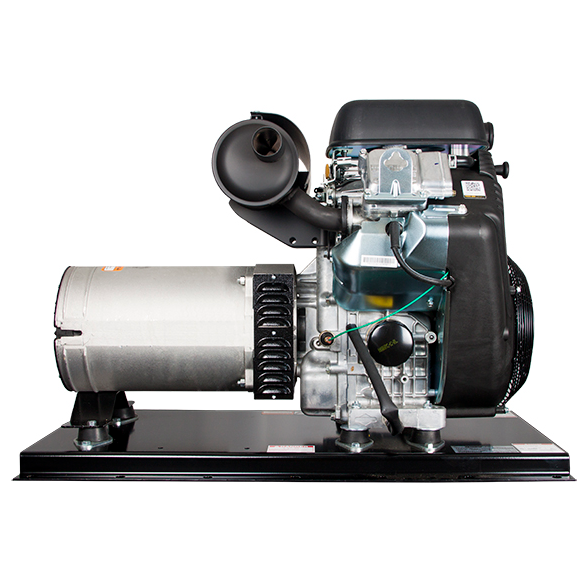

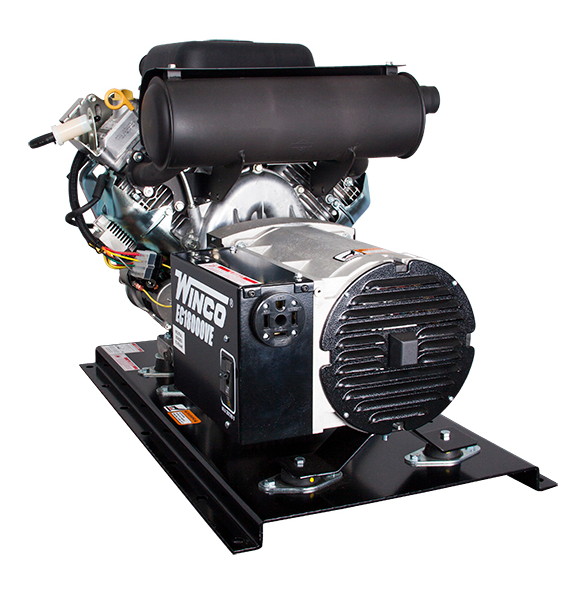

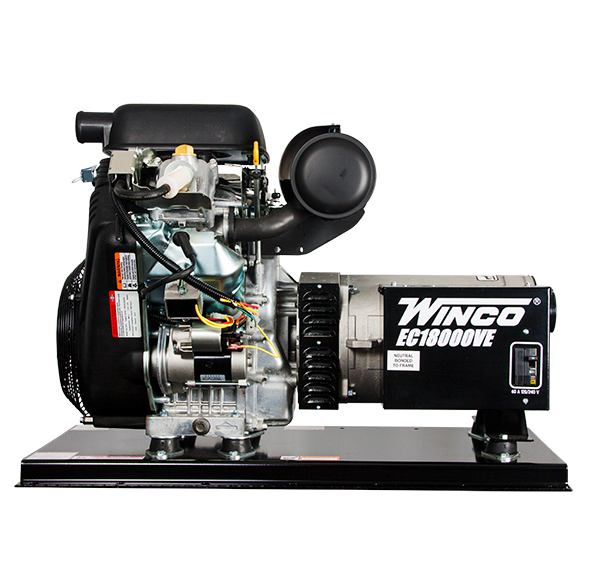

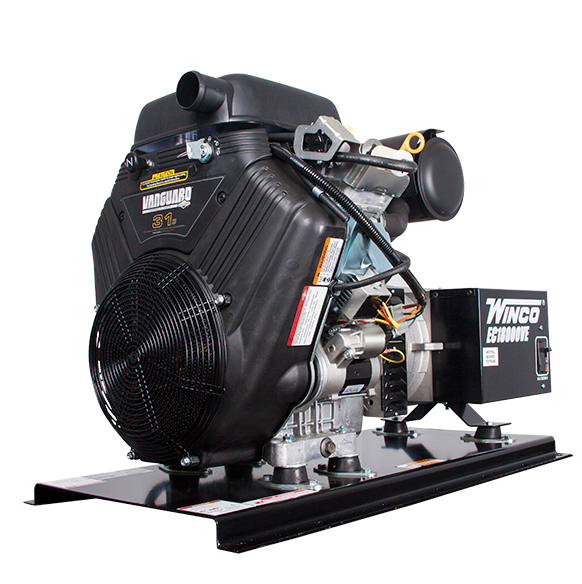

Winco EC18000VE Vehicle Mounted Generator

$3,298.00

Our EC18000VE has the same basic components as our WL18000VE. We stripped it down to just the essentials. It is a great unit to add to vehicles and trailers that reduces cost and weight in comparison to liquid-cooled models.

Line Voltage Monitor

Line Voltage Monitor

15 Gallon Fuel Kit

15 Gallon Fuel System – Includes 15 gallon composite fuel tank, primer bulb, fuel cap with gauge, carbon canister, fuel line, connectors and brackets.

Battery *

Battery

Maintenance Kit

Maintenance Kit

Compare

Description

FEATURES

  • Briggs & Stratton Vanguard Engine - engineered to power equipment that works for a living.
  • Low Oil Protection - In the event there is a low oil level, the engine will shut down to protect the engine from damage.
  • Vacuum Fuel Pump - 2 feet fuel lift capacity.
  • 100% Load Tested - Every generator is fully tested prior to leaving Winco's facility.

    EC18000VE Generator Specifications

    SURGE WATTS18,000
    CONTINUOUS WATTS15,000
    AMPS @ 240V62.5
    OUTPUT120/240 VAC
    VOLTAGE REGULATIONCAPACITOR +/- 5%
    MAIN CIRCUIT BREAKER60 AMP, 240V (GFCI)
    BONDED NEUTRALYES
    120/240 VOLT RECEPTACLES(1) NEMA 14-60 60A
    UNIT WARRANTY2 YEARS
    FUEL CONSUMPTION 100% LOAD2.69 GAL/HR
    FUEL CONSUMPTION 75% LOAD2.15 GAL/HR
    FUEL CONSUMPTION 50% LOAD1.62 GAL/HR
    FUEL CONSUMPTION 25% LOAD1.21 GAL/HR
    FUEL CONSUMPTION 0% LOAD0.88 GAL/HR
    SHIPPING DIMENSIONS50" x 27" x 32"
    SHIP WEIGHT326 LBS
    FREIGHT CLASS70

    EC18000VE Engine Specifications

    ENGINE BRANDBRIGGS & STRATTON
    ENGINE MODELVANGUARD
    ENGINE STARTERELECTRIC
    ENGINE SPEED3600 RPM
    ENGINE CYLINDERSV-TWIN
    DISPLACEMENT/TYPE895 CC / OVH
    LOW OIL PROTECTIONSTANDARD
    RECOMMENDED OIL10W-30
    OIL CAPACITY2.5 QT
    DBA @ 7 METERS79
    HOUR METERYES
    MOTOR STARTING (CODE G)6 HP
    EPA APPROVEDYES
    CARB APPROVEDNO
    CSA APPROVEDNO
    ENGINE WARRANTY3 YEARS COMMERCIAL

    Printable Brochure:

    Spec Sheet                                          Vanguard 895cc Operating Manual
    Operating Manual                            Vanguard 895cc Parts List
    Parts List
    Outline Drawing

Additional information

Weight 326 lbs
Dimensions 50 × 27 × 32 in
