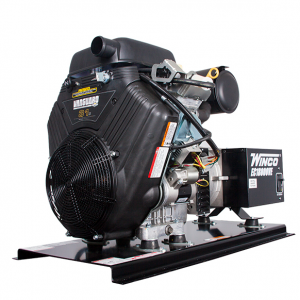

Winco EC22000VE-04/A Vehicle Mounted Generator

$5,075.00

There is nothing bigger then our EC22000VE Models.  We checked.  Our EC22 provides more running watts then any other air cooled generator on the market.  It is a great unit to add to vehicles and trailers that reduces cost and weight in comparison to liquid cooled models. The EC22000VE-04 is 3 phase, 120/208 Volt.

Choose the right one for your application; Single or Three Phase, 120/240, 120/208, 277/480 Voltages.

Fuel System Kit

15 Gallon Fuel System Kit

Battery

Battery

Maintenance Kit

Maintenance Kit

Compare

Description

FEATURES

  • Briggs & Stratton Vanguard Engine - Premium grade Vanguard engines are application engineered to power equipment that works for a living.
  • MAUX Auxilliary System - Ensures the generator end can withstand 300% motor starting inrush for 20 seconds.
  • Low Oil Protection - In the event there is low oil pressure, the engine will shut down to protect the engine from damage.
  • Vacuum Fuel Pump - 30" fuel lift capacity.
  • 100% Load Tested - Every generator is fully tested prior to leaving Winco's facility.

EC22000VE-04/A Generator Specifications

VOLTS120/208
WATTS22,000
RUNNING WATTS19,000
PHASETHREE
PF0.8
AMPS65
CB SIZE60 AMP
HERTZ60
VOLTAGE REGULATIONAVR +/-1.5%
BONDED NEUTRALYES
120/240 VOLT RECEPTACLESN/A
GENERATOR WARRANTY2 YRS
FUEL CONSUMPTION 100% LOAD3.28 GAL/HR
FUEL CONSUMPTION 75% LOAD2.67 GAL/HR
FUEL CONSUMPTION 50% LOAD1.88 GAL/HR
FUEL CONSUMPTION 25% LOAD1.43 GAL/HR
FUEL CONSUMPTION 0% LOAD0.95 GAL/HR
SHIPPING DIMENSIONS50" x 27" x 32"
SHIP WEIGHT496 LBS
FREIGHT CLASS70

EC22000VE Engine Specifications

ENGINE BRANDBRIGGS & STRATTON
ENGINE MODELVANGUARD
ENGINE STARTERELECTRIC
ENGINE SPEED3600
ENGINE CYLINDERSV-TWIN
DISPLACEMENT TYPE993 CC/OVH
LOW OIL PROTECTIONSTANDARD
RECOMMENDED OIL10W-30
OIL CAPACITY2.5 QT
DBA @ 7METERS79
FUEL SYSTEMOPTIONAL
HOUR METERYES
MOTOR STARTING (CODE G)N/A
EPA APPROVEDYES
CARB APPROVEDNO
CSA APPROVEDNO
ENGINE WARRANTY3 YRS COMMERCIAL

Printable Brochure:
Spec Sheet                           Vanguard Engine Operating Manual
Operating Manual            Vanguard Engine Parts List
Outline Drawing                Fuel Kit Installation Manual

Additional information

Weight 495 lbs
Dimensions 60 × 27 × 32 in
