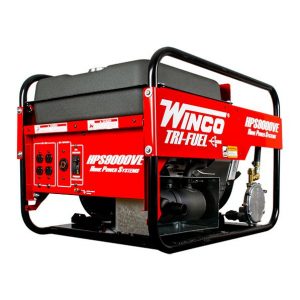

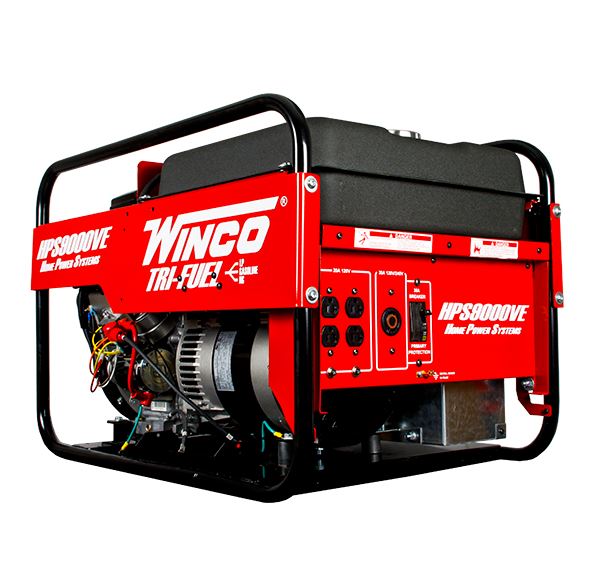

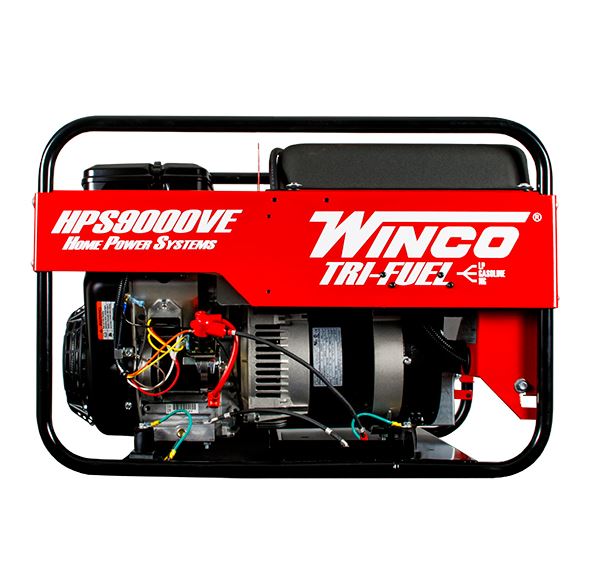

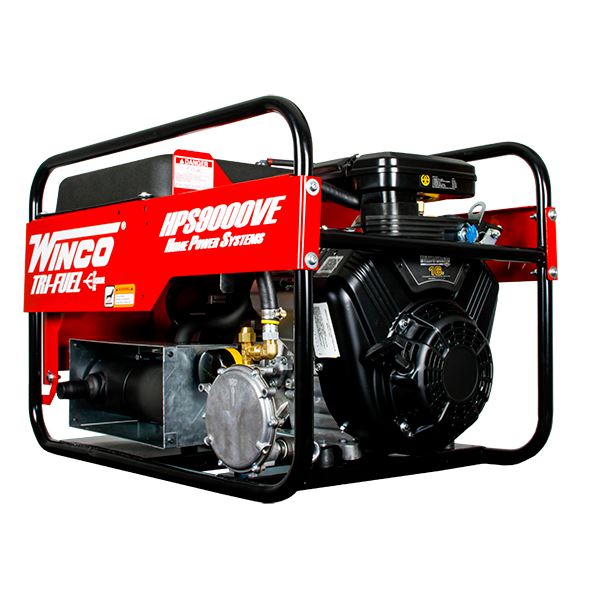

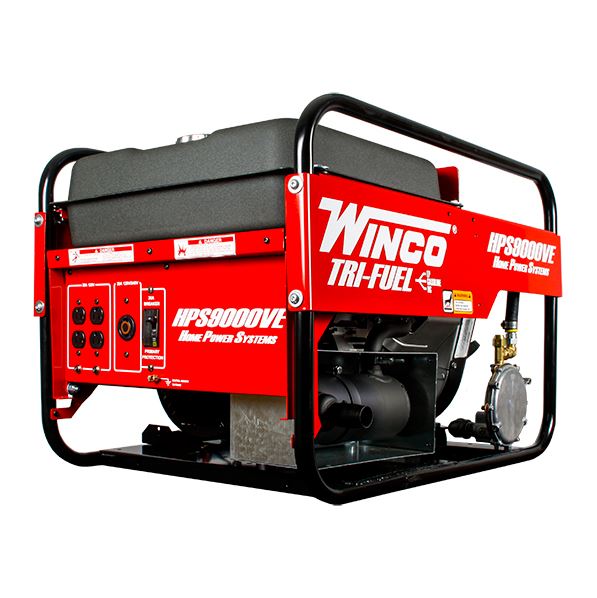

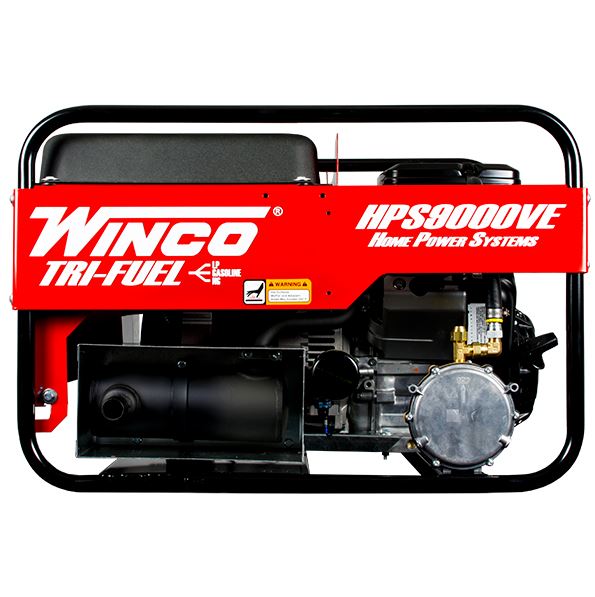

Winco HPS9000E Tri-Fuel Portable Generator

$2,474.00

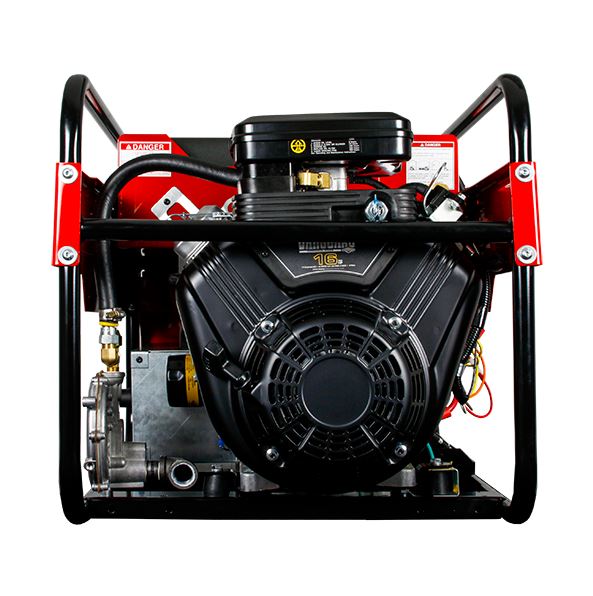

The WINCO HPS9000VE tri-fuel generator is a great value by combining great components and excellent electrical performance. The Briggs and Stratton Vanguard is commercial grade and designed to hold up under the most demanding conditions. The V-twin 480CC engine design provides smoother power than single cylinder engines. This generator produces 8000 watts of power and at less than 5% total harmonic distortion is safe for sensitive loads like furnaces, TV’s and computers.



Price Includes Freight to a Business Address – The customer is responsible for unloading merchandise upon delivery.



Printable Brochures:

HPS9000VE

2 Wheel Dolly Kit

Winco Manual Transfer Switch 30 AMP



Dolly Kit

2-Wheel Dolly Kit

Generator Cover

Canvas Generator Cover

Line Voltage Monitor

Line Voltage Monitor

60/30 Amp Emergency Transfer Service Kit

60/30 Amp Emergency Manual Transfer Service Kit

30 Amp Plug Twist Lock Plug

30 Amp Plug

Fuel Solenoid Kit

Low Pressure Fuel Solenoid Kit

Battery

Battery – 12 Volt U1 300 CCA – 17 Lbs.

Battery Trickle Charger

Battery Trickle Charger

Maintenance Kit

Maintenance Kit – 16200-007 (Includes air filter, spark plug, oil, Sta-Bil Fuel stabilizer & oil filter).

Package Deal

Package Deal – Includes: Generator, gen cover, dolly kit, low pressure fuel solenoid, manual transfer switch & battery charger. You save $114!

Compare

Description

FEATURES

  • Briggs & Stratton Vanguard Engine - Premium grade Vanguard engines are application engineered to power equipment that works for a living.
  • Tri-Fuel - Designed to easily run and transition between three fuels; natural gas, LP Gas and gasoline.
  • Low Oil Protection - In the event there is a low oil level, the engine will shut down to protect the engine from damage.
  • Sturdy Wrap-Around Welded Tubular Cradle - Winco uses 1"-14 gauge steel for dependable durability.
  • 7 Gallon Fuel Tank - The EPA-approval steel fuel tank design eliminates hydrocarbon emissions.
  • Premium Square D Circuit Breakers - Square D is the industry leader in circuit breaker protection.
  • 100% Load Tested - Every generator is fully tested prior to leaving Winco's facility.

GENERATOR SPECIFICATIONS

  • Surge Watts: 9,000 (Based on gasoline fuel.  Derate 10% for LP & 20% for Natural Gas.)
  • Continuous Watts: 8,000 (Based on gasoline fuel.  Derate 10% for LP & 20% for Natural Gas.)
  • Continuous Amps: 66.7/33.3 (Based on gasoline fuel.  Derate 10% for LP & 20% for Natural Gas.)
  • Output: 120/240 Volt
  • Voltage Regulation: +/- 5%
  • Main Circuit Breaker: 35 Amp
  • Bonded Neutral: Yes

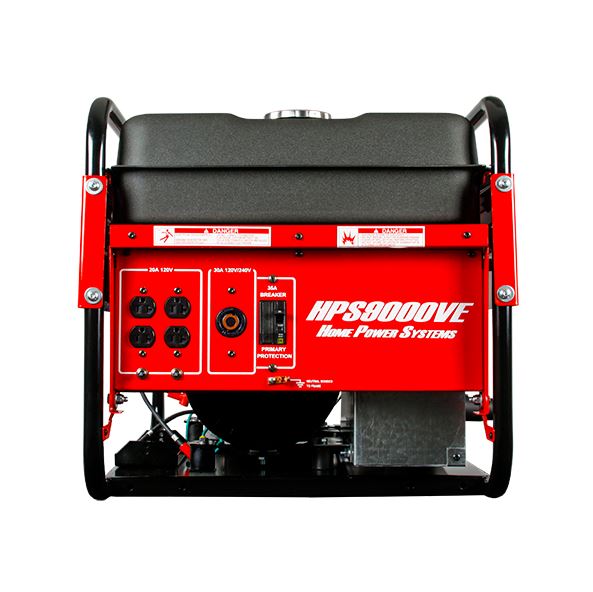

  • 120 Volt Receptacles: (2) NEMA 5-20 20A Duplex
  • 120/240 Volt Receptacles: (1) NEMA L14-30 30A
  • Lifting Eye: No
  • 2-Wheel Dolly Kit: Optional
  • Protective Roll Frame: 14 Gauge Steel
  • Generator Warranty: 2 Years Residential (For complete generator warranty information, refer to the HPS9000E manual.)

ENGINE SPECIFICATIONS

  • Engine Brand: Briggs & Stratton
  • Engine Model: Vanguard
  • Engine Starter: Recoil/Electric
  • Engine Speed: 3600 RPM
  • Engine Cylinders: V-Twin
  • Displacement/Type: 480 CC / OHV
  • Low Oil Protection: Standard
  • Oil Type: 10W-30
  • Oil Capacity: 1.4 - 1.5 Quarts
  • dBA at 7 Meters: 77
  • Motor Starting: 4 HP (Code G capacitor start motor)
  • Battery Size: BCI 20 or 24HL 300 CCA
  • EPA Approved: Yes
  • CARB Approved: No
  • CSA Approved: No
  • UL Listed: NO
  • Engine Warranty: 3 Years Residential (Contact your local Honda service center for engine warranty assistance.)

FUEL

  • Fuel Tank: 7 Gallons
  • Fuel Gauge: On Tank
  • Fuel Use:
    • Gasoline - 1.3 Gallon Per Hour
    • LP Gas - 1.9 Gallon Per Hour / 173,853 BTU Per Hour
    • Natural Gas - 180 Cubic Ft Per Hour - 183,600 BTU Per Hour

SHIPPING

  • Dimensions:  32.75" L x 22.5" W x 22" H
  • Net Weight: 242 Lbs
  • Shipping Dimensions: 33" L x 25" W x 27" H
  • Shipping Weight: 267 Lbs

OPTIONAL ACCESSORIES

  • 2 Wheel Dolly Kit - Gives your generator excellent mobility on the ground. The 10" flat free tires get you through mud, snow, sand and soggy lawns. The solid steel axle runs the entire width of the generator providing superior strength. All components are protected from corrosion with our durable baked on powder coat paint system. 32 Lbs.
  • Canvas Generator Cover - Storage can be hard on your generator. Moisture and dirt can damage the engine and generator windings over time. Often during transport and storage the generator is damaged by scrapes and dents. Winco's heavy tailored canvas cover will protect your generator from these hazards protecting your investment. A built in band keeps the cover in place. This cover is for generators with 2-wheel dolly kits installed.  3 Lbs.
  • Line Voltage Monitor - This compact voltmeter can be plugged in to the 120-volt (NEMA 5-20) receptacle on any WINCO generator to assure you that your generator is functioning properly.  1 Lb.
  • Emergency Transfer Service Kit 60/30 Amp - Allows your portable generator to be quickly and safely connected to a building electrical panel for backup service during a power outage. A hinged lockable enclosure contains a 12-foot cord with a NEMA L14-30 twist-lock plug and stores the cord set when not in use. A quality Square D circuit breaker load center with interlocked generator and utility main breakers to prevent feedback to the utility, installs next to the building electrical service panel. Four 120-volt (or 8 tandem) or two 240-volt branch circuits or a combination of the two can be connected for emergency service. This manual transfer switch is not UL listed.  45 Lbs.
  • 30 Amp Locking Plug - (NEMA L14-30) The 30 amp twist-lock plug is perfecting for running power into a transfer switch or other distribution box. The cord is sourced locally and specifications should be determined by a competent electrician taking distance, load, and other environmental factors into account.  1 Lb.
  • Low Pressure Fuel Solenoid - The solenoid kit is designed for tri-fuel generators that will be left unattended while connected to the fuel supply. The normally closed ASCO valve interrupts the fuel supply whenever the generator is not running preventing fuel leaks.  4 Lbs.
  • Battery - 12 Volt U1 300 CCA - 17 Lbs.
  • Battery Trickle Charger - This battery charger is designed to fully charge a battery and maintain it at proper storage voltage without the damaging effects caused by trickle chargers. Included is a quick connect ring terminal harness for hard to reach areas and alligator clips for an alternate connection.  2 Lbs.
  • Maintenance Kit - 16200-007 - Your generator requires regular maintenance. Our kits provide all of the necessary products to ensure your generator is ready when you need it most.  (Includes: air filter, spark plug, oil, & Sta-Bil fuel stabilizer & oil filter). 6 Lbs.
  • Package Deal - Includes: Generator, gen cover, dolly kit, low pressure fuel solenoid, manual transfer switch & battery charger.  You save $114!

Additional information

Weight 267 lbs
Dimensions 33 x 25 x 27 in
